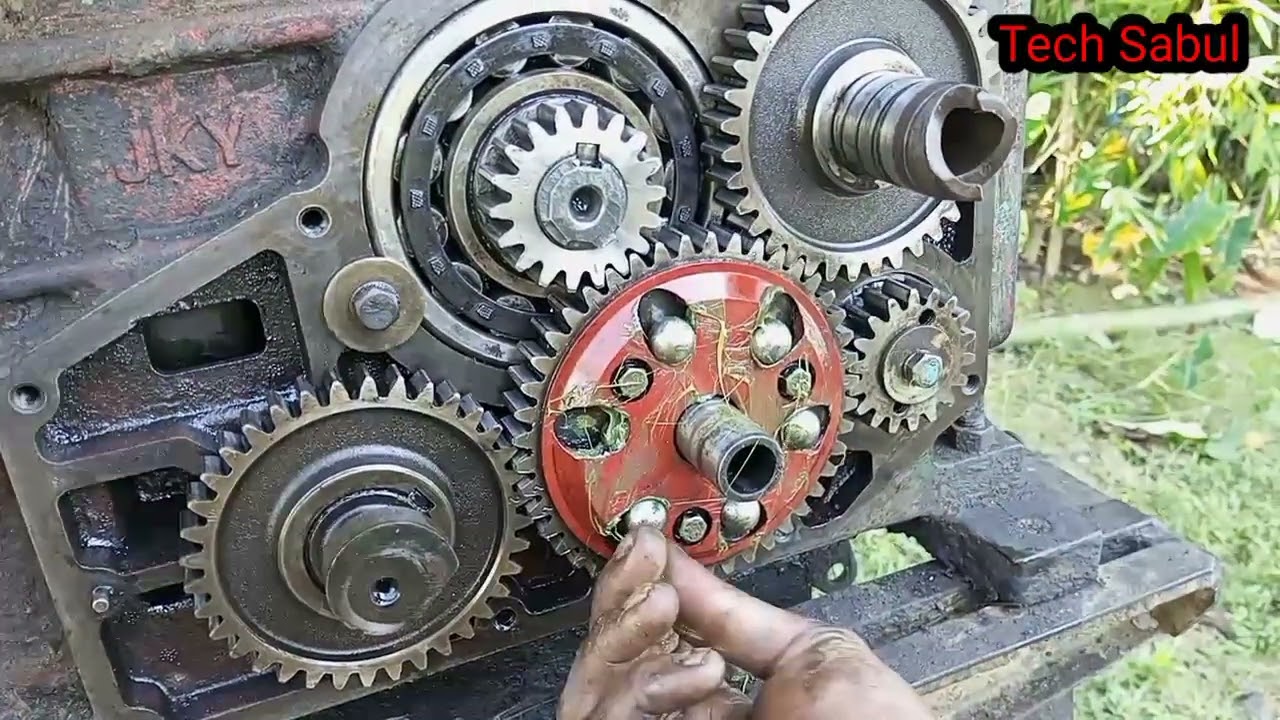

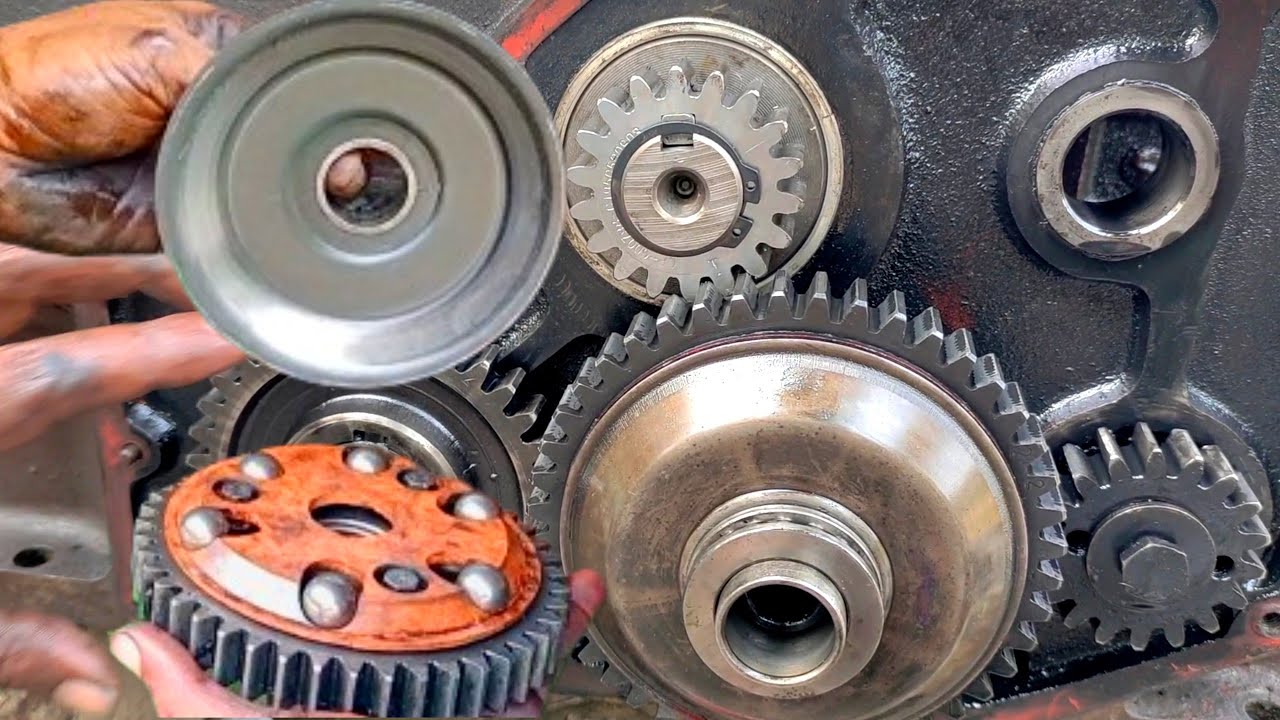

Gear Timing Setting

To adjust the timing of the gears on a 24HP diesel engine or a Chinese diesel engine, follow these steps:

1. Remove the valve cover to expose the timing gears.

2. Locate the timing marks on the gears. These marks may be numbered with numbers or have other indicators.

3. Rotate the engine by hand until the timing marks on the crankshaft and camshaft are aligned correctly.

4. Loosen the bolts holding the timing gears in place.

5. Adjust the timing by moving the camshaft gear one tooth forward or backward, depending on the engine's requirements. Refer to the engine's manual for the correct timing specifications.

6. Tighten the bolts holding the timing gears in place and recheck the timing marks to ensure they are still aligned correctly.

7. Replace the valve cover and start the engine. Check the timing again using a timing light to ensure it is set correctly.

It's important to note that Chinese diesel engines come in various sizes, including 16 HP, 20 HP, 24 HP, and 25 HP. These engines are commonly used for generating electricity or operating water pumps, as you mentioned. When adjusting the timing on a Chinese diesel engine, it's essential to refer to the engine's manual or seek the advice of a qualified mechanic to ensure the correct procedure is followed.
