How to Draw a Groundwater Flow Net

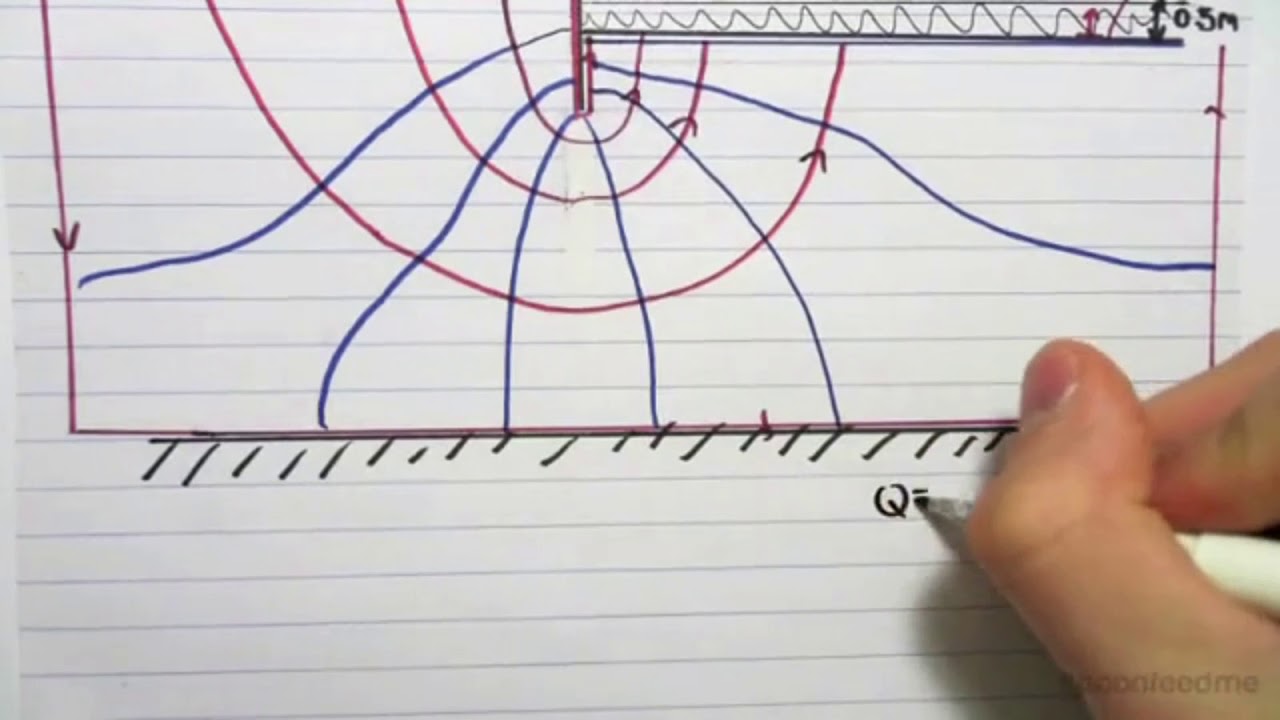

This video illustrates the process of drawing a groundwater flow net. The flow net represents groundwater flow below a dam from a headwater reservoir on the left to a tailwater reservoir on the right. A cutoff wall protruding below the base of the dam increases the flow path below the dam, decreasing the flow velocity, thus reducing the potential for the groundwater flow to erode the porous material at the toe of the dam.
