Monarch 15.5 X 30 Lathe sn: 36132
Автор: Machinery Consultants Inc
Загружено: 2019-02-20
Просмотров: 6462
We are pleased to offer, subject to prior sale and our conditions of sale, the following for your consideration:

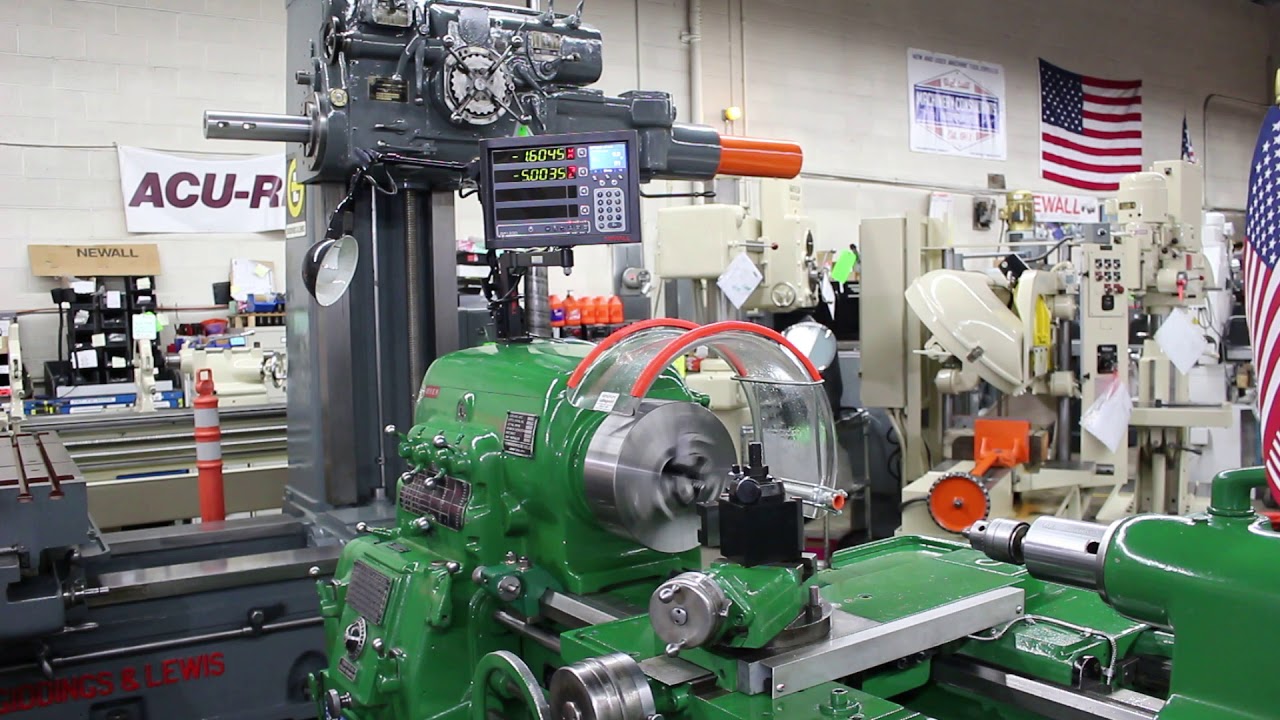

Pre-Owned Monarch Heavy Duty 15.5 x 30 Toolroom Lathe
Model: 60 Serial No. 36132
General Specifications are approximate and are subject to verification
Swing over bed 15.5 actual
Swing over cross slide 10”
Max distance between centers 30”
Spindle nose D1-6
Spindle bore 1 1/2”
Spindle speeds (16) 24 to 1000 RPM
Tailstock taper #4 MT
Width of bed 14”
Threads (60) 2 to 120 TPI
Feeds (60) .0017 to .1031 IPR
Main Motor 5HP 220/440V
Approx weight 5000 lbs
Approx dimensions 92”L x 41”W x 69”H
Complete With
• Taper attachment with bed clamp
• Chip pan
• 10” 3 jaw chuck
• Newall DP1200 DRO
• Wedge Style Quick Change Tool Post with 4 Holders
• Live center
• Keyed Drill Chuck
• Work Light
• Lexan Chuck Guard
Royal Machine Level Pads
Condition: This is a Great tool in wonderful condition from long time standby storage!
Inventory #7014
MACHINERY CONSULTANTS INC
1390 W. 200 S. Salt Lake City, UT 84104
Ph: 801-531-9500 Fx: 801-531-9555
Em: mci@machineryconsultants.com
www.machineryconsultants.com
