Mid Century Modern DIY Chess Pieces

My son loves to play chess and I have no idea how to play. So I decided to build a chess set!

I originally thought of turning these on the lathe but quickly gave up on that plan, as I lack the skills to do so. But I am a huge fan of modern art and minimalist objects. And started to do some research and eventually came across a set created by Lanier Graham in 1966 and fell in love with its simplicity and really enjoyed how all of the pieces fit in a tiny little box.

This build is Part 1 of 2 and may likely contain an optional Part 3 which would be a box to hold the chess pieces.

What I really like about this set is that the dimensions are not terribly specific.

In my case, I chose to go with chess pieces that were 20mm by 20mm, so a Pawn would end up being 20mm cubed.

I will give the dimensions of each piece in terms of blocks, allowing you to adjust the piece size if you wish.

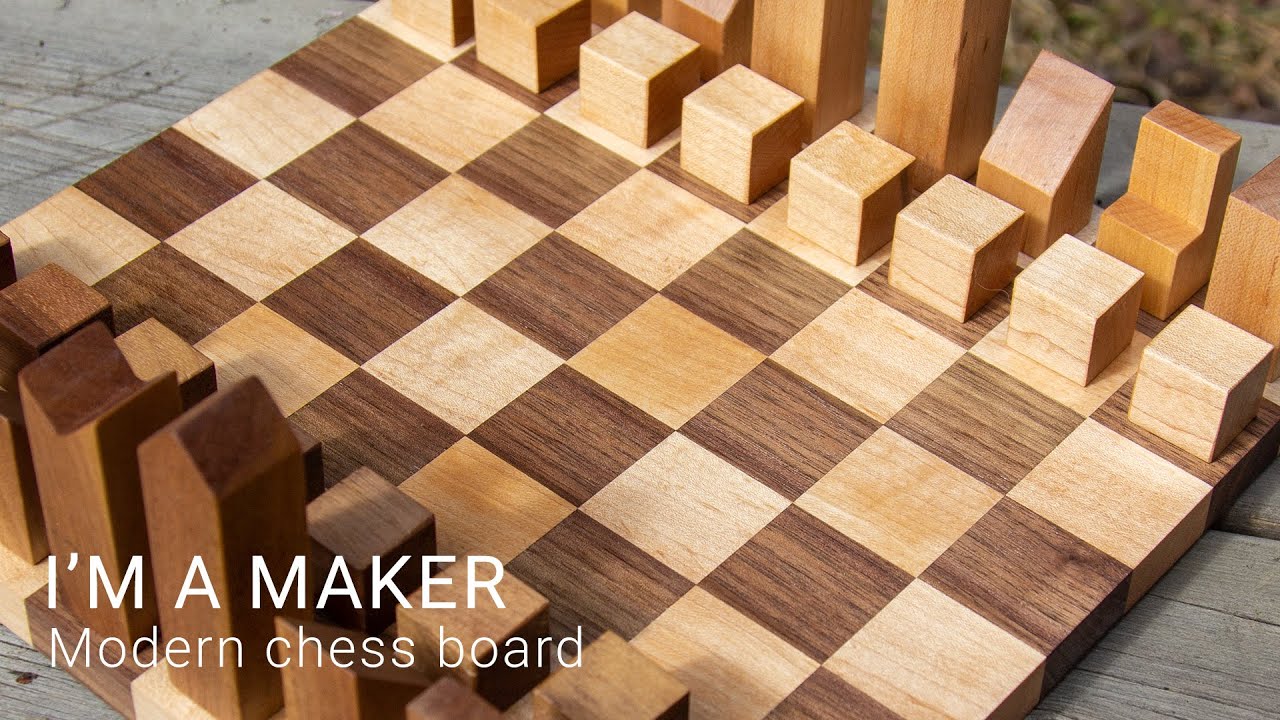

Checkout the Chessboard build here:    • How to Make a Modern Chess Board from Recy...

~ Sizing and Dimensions ~

Because I started with the chess pieces I wasn't concerned too much about the size of the pieces, but make sure to check and confirm the official rules of Chess. I think your pieces are supposed to be about 25% smaller than the squares they go on. 1” square would be a ¾” piece.

Pawn - 1x1 block
Rook - 1x2 block
Knight - 1x2 block
Bishop - 1x2 block
Queen & King - 1x6 block, plus the kerf of your bandsaw or hand saw blade

~ Now we will need to do some layout ~

The Pawns are simple, create a cube
The Rook is also super simple, create a block 1x2

For the Knight, I made a mark in the middle and divided the width essentially creating a lap joint.

The Bishop is a 45-degree angle starting at one end and should end in the middle of the piece.

The King and Queen are a bit different, find the middle and draw a 45-degree line on both sides of the half so that you have a V.

~ Final Steps ~
Once everything has been cut out and obviously for each colour of the wood ( I chose maple and walnut, but you could use any contrasting woods ) it was time for a lot of sanding. Because this chess set is “Modern” we want to maintain the sharp edges so break the edges but do not round them.

I applied a few coats of Tung oil, it was rather daunting applying then cleaning off the excess oil but it turned out amazing!

Keep an eye out for Part 2 where I build the Chessboard!

   • How to Make a Modern Chess Board from Recy...

I hope you enjoyed this one, and please if you haven’t already, please like 👍 and subscribe 😁

You can also check this out on the blog
https://imamaker.ca/2019/07/mid-centu...
https://imamaker.ca/2019/09/maple-and...

Share, Like, and Subscribe:
https://bit.ly/subMaker

Lend a hand!
Buy me a coffee - https://bit.ly/helpMaker
Amazon Store - https://bit.ly/shopMaker

Follow:
Instagram -   / heyimamaker
Facebook -   / heyimamaker
Twitter -   / heyimamaker
Website - https://imamaker.ca/

Tools Used:
Thickness Planer
Band Saw
Table Saw
80 Tooth crosscut blade
Sand Paper
Tung oil
Rotring 800 Pencil
Square
Ruler


Chapters
0:00 - Intro
2:13 - Chess piece layout
7:56 - Sanding…
8:12 - Applying finish
9:00 - Chess piece layout
9:58 - Cleaning up the pieces
