Sharpening Jig for Chisels and Plane Blades

In this video, I am building a chisel and plane blade sharpening jig.

► For more details check out my website: https://allflavorworkshop.com/
► Tutorial and Plans available: https://allflavorworkshop.com/chisel-...
► ALL Woodworking Plans: https://allflavorworkshop.com/woodwor...

I made a sharpening jig that can be used to sharpen both chisels and hand plane blades. I am not using whetstones for sharpening but sandpapers instead. You can both dry and wet sharpen. The important thing is to have a flat surface so that the bevel is equally ground. You can set up an angle from 15° to 35°. Sandpapers are glued to the surface using temporary spray glue. You can easily remove them and replace them with a new one.

I started by making the chisel holder. It has 2 parallel grooves where aluminum tubes hold a threaded rod. Then I made the side stands. The important thing is to drill the holes on the sides equally same (height) so the jig is horizontally leveled and does not end up skewed. I attached the side stands to runners made from an aluminum flat bar. Finally, I cut 2 grooves in the base desk for the runners.

🛠 Tools and Material (affiliate links):
Table Saw / Proxxon Mini Table Saw – https://amzn.to/47mWiGf
Trim Router – https://amzn.to/3HbQcOg
Corded Hand Drill (Drill Stand) – https://amzn.to/3NSA3Bo
Chisel Set – https://amzn.to/3tHNJrT
One Hand Clamps – https://amzn.to/48jGxkZ
Spring Clamps – https://amzn.to/41Nuh9D
Machinist Square - https://amzn.to/48fT6xw
Speed Square - https://amzn.to/3RO67Hy
Dozuki Japanese Saw – https://amzn.to/3NS5viZ
Epoxy – https://amzn.to/3tJ5R4L
M6 Bolts, Washers, Wing Nuts – https://amzn.to/41PodgQ
Drill Bits – 6mm – https://amzn.to/48Kaaf7
Router Bits – 6mm – https://amzn.to/3NQNDVX
Sandpaper Sheets – https://amzn.to/41OMx2p
Threaded rod – Dia 6mm – https://amzn.to/3vnlvDb
Plywood – 12 mm – https://amzn.to/3TPULp2
Round Aluminum Tube 2x (OD 8mm, ID 6mm) – https://amzn.to/41Q4IoD
Plywood 9mm, Aluminum bar 4mm

🛠 All My Tools & Gear:
https://allflavorworkshop.com/tools-a...

We may earn an affiliate commission when you buy something through our retail links. As an Amazon Associate AllFlavor Workshop earns from qualifying purchases.

► Subscribe To AllFlavor Workshop YT Channel: https://bit.ly/2T9cIxD
► Sign up for my newsletter: https://allflavorworkshop.com/mailing...

► Other helpful tutorials:

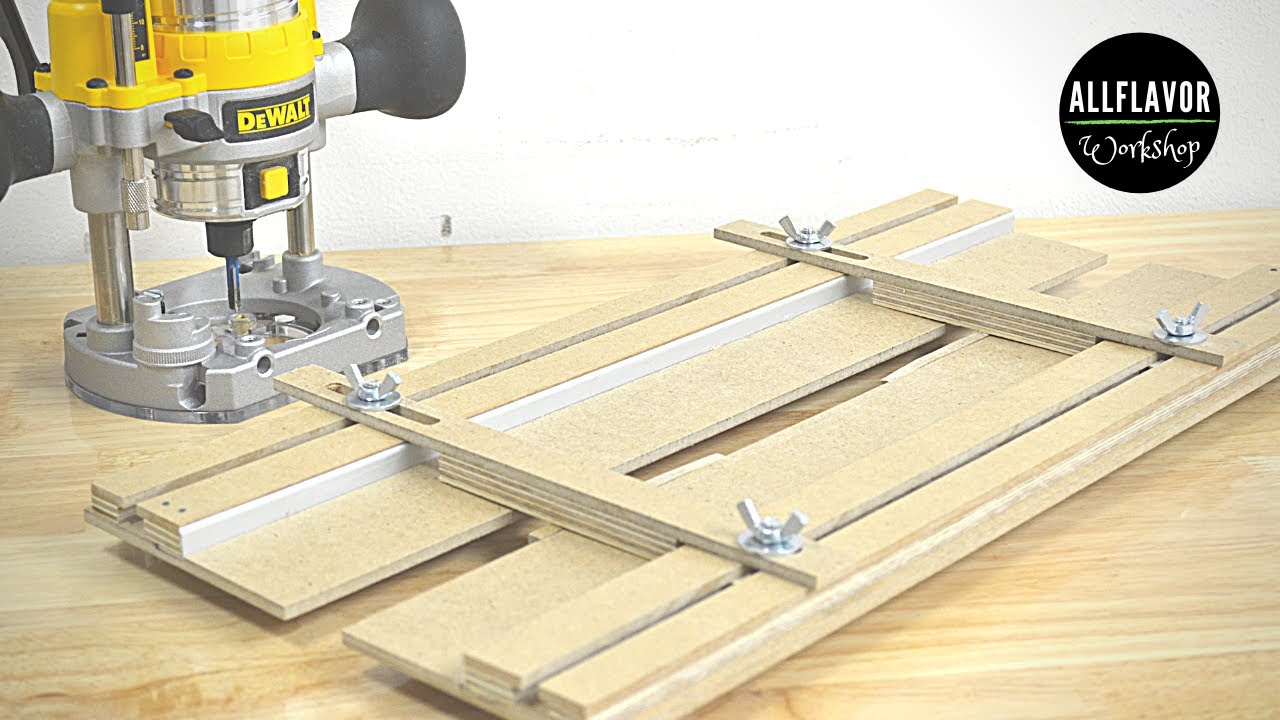

   • Adjustable Router Guide Jig | Router Templ...
   • Make a Drill Press Stand | Drill Press Sta...
   • Benchtop Router Table | Router Table DIY

► Follow me on:
Website - https://allflavorworkshop.com/
Pinterest -   / allflavorworkshop
Instagram -   / allflavorworkshop

If you have any thoughts or questions, let me know in the comments below and I will get back to you as soon as possible. I am not a professional but I like making something new with my hands. Any suggestion or advice is highly appreciated.

TIMESTAMPS:
00:00 Chisel sharpening jig demonstration
01:01 Building a holder for chisel
04:49 Assembling the jig together
05:33 Building the sharpening base
06:49 Assembling all parts of the chisel sharpener
08:00 How to use a DIY chisel sharpening jig
