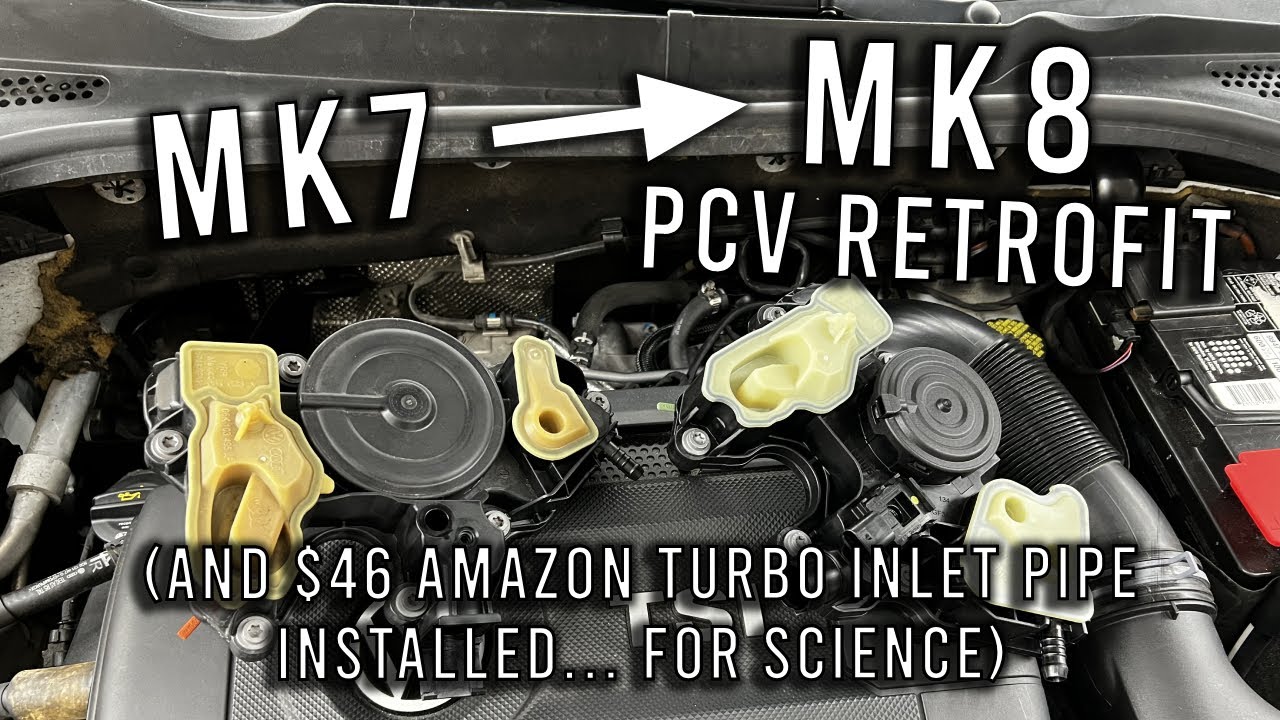

MK7 to MK8 PCV Install How-To, and Amazon/Epman Turbo Inlet Pipe initial review

www.datadrivenmqb.com
www.facebook.com/datadrivenmqb

MK8 Full Retrofit Install Specifics:
   • MK8 PCV Venturi (Full Retrofit) Installati...

MK8 Basic vs Full Retrofit:
   • MK8 PCV Basic vs Full Retrofit: Effects on...

*CONFIRMED: Aftermarket turbo inlet pipes can cause problems*
   • Confirmed: Turbo Inlet Pipes can Break our...

Why I think TIPs may cause PCV problems:
   • MK7/MK8 PCV Updates: Are Turbo Inlet Pipes...

MK8 Retrofit feedback and MK7/8 PCV tech talk:
   • MK8 PCV Retrofit UPDATES (Pt 10): User Fee...

DISCLAIMER: As an Amazon Associate, I may earn a small commission if you purchase from some of the qualifying links below - this does not cost you anything extra, but helps support my efforts to continue producing videos and maintaining the website.

Basic Retrofit Parts List:
06K-103-210-D (PCV hose) https://vw.oempartsonline.com/oem-par...
06Q-103-495-B (PCV valve)
https://vw.oempartsonline.com/oem-par...
06M-906-094 (bung, looks like price has gone up about $10 since I last purchased)
https://vw.oempartsonline.com/oem-par...
Dorman 47395 (3/8 Vacuum cap - not required if doing Full Retrofit)
https://amzn.to/4rnf3or

Additional Parts needed for Full Retrofit that I used:
034 Turbo muffler delete:
https://itsnotstock.com/034motorsport...
90 degree 1/8npt to 3/8 barb fitting:
https://amzn.to/4iuMWzK
1/8npt extensions:
https://amzn.to/4p8aAV8

Jeff's TIP/PCV vacuum testing on a flowbench: https://mygolfmk7.com/2024/01/mk7-tip...

Epman Turbo Inlet Pipe (can't really recommend it, watch at 15:47 why): https://amzn.to/4roq5tn

Capri 10mm thin wrench mentioned, very useful for OEM coil pack studs:
https://amzn.to/43XNFDs

Inexpensive hose pick tool set:
https://amzn.to/485IsMj


0:00 Intro
0:46 Parts needed
1:31 Install sensor bung
2:02 Remove intake tube
2:38 Attempt to remove PCV hose
3:42 Disconnect coil packs
4:22 Dealing with a broken connector
4:54 Unbolt coils 3 and 4
5:25 Tip for OEM coil studs
5:52 Remove coil packs 3 and 4
6:20 Remove PCV hose w/ TIP
6:50 Separate PCV hose from valve
7:44 Fail at snaking PCV hose out
8:44 Separating a stubborn PCV hose from TIP
9:23 Hose is removed
9:41 MK7 valve removal starts
9:55 N80 purge valve out of the way
11:01 Unbolt old PCV valve
11:57 Clean and inspect after removal
13:22 Install MK8 PCV valve
14:03 Caution: Do not overtorque
15:47 Epman TIP initial impressions/quality review
20:13 N80 purge valve reinstalled
21:53 TIP install
23:26 Note if doing a Full Retrofit
24:39 Install Tiguan PCV hose
25:41 Reinstall coil packs
26:29 Reinstall intake tube
27:19 Final once-over
28:52 Final words
29:13 Preview of testing to come


#gti #mk7 #mk8 #vw #pcv #golfr #datadrivenmqb
