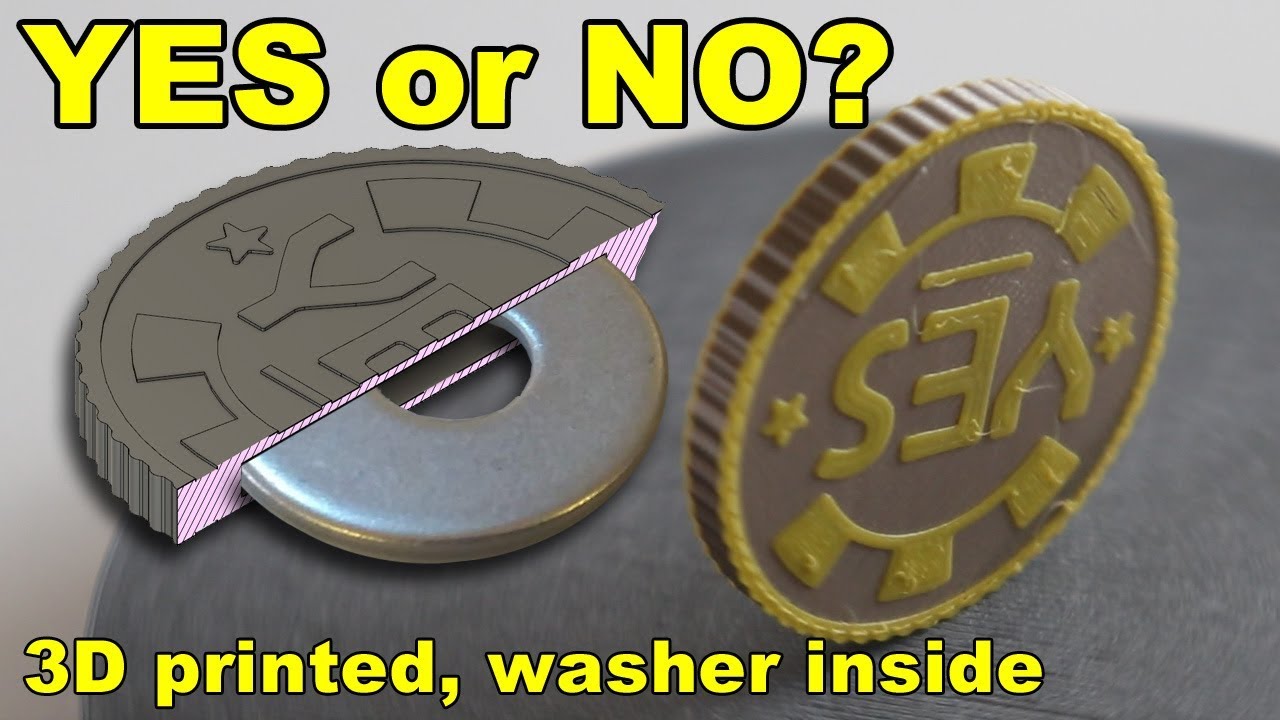

3D printing Yes No coin with inserted screw washer
Автор: My Tech Fun
Загружено: 2019-06-10
Просмотров: 13256
In my Dice mania video series, I noticed, that I skipped the D2 dice, a coin. And I would like to design and 3D print a coin with Yes and No texts on it. To get better feeling of the coin, I inserted a screw washer into 3D printing, so it is really heavy. I printed it in 2 colors, so the text is more noticeable. The only issue is that it doesn't give that flipping coin sound.
Online tool I used for inserting the M600 command for filament change:
https://blog.prusaprinters.org/color-...
More about Printer pause code I used you can see in my video about magnetic dice:
http://www.mytechfun.com/video/12
STL file used in this video can be downloaded from here:
http://www.mytechfun.com/video/16
Layer heights for color changes are:
0.4 mm (not 0.2 mentioned in video) filament change, after printing the text NO
3.4 mm pause the printing for inserting a washer
4.0 mm last filament replace, before printing text YES
Design is optimized for 0.2 mm quality layer height 3D printing.
