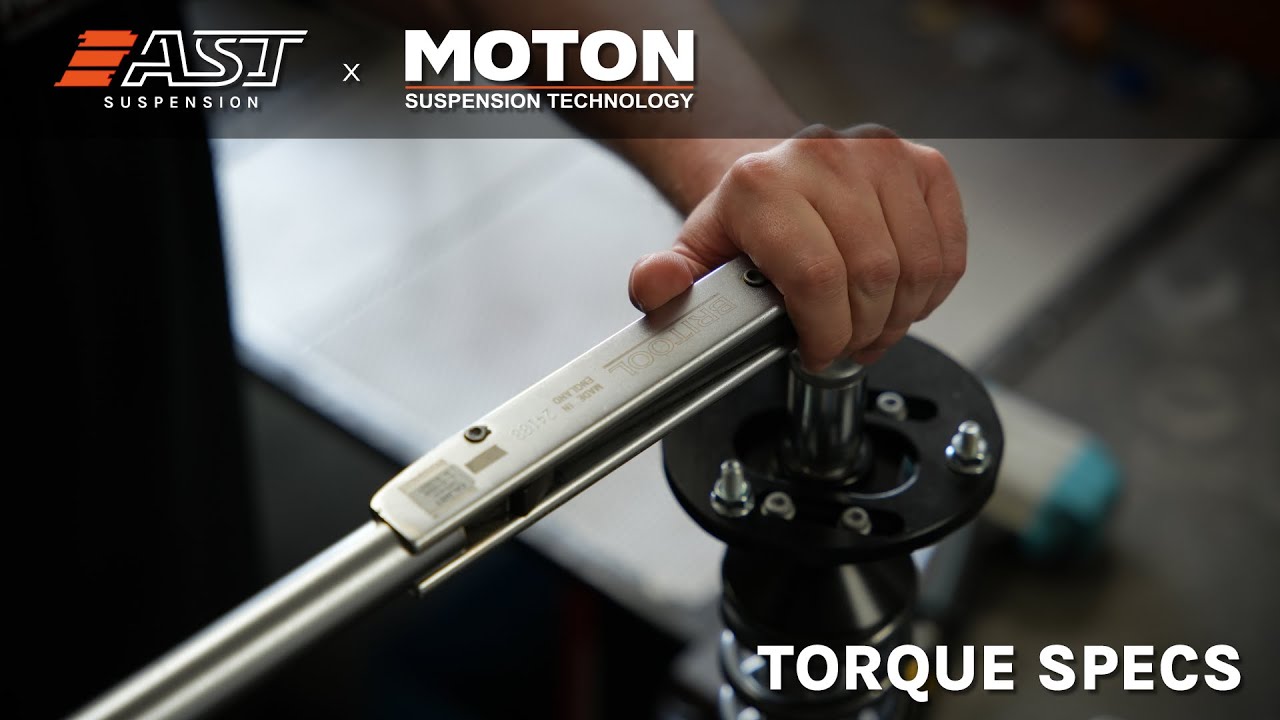

Torque specs for AST suspension 5100 / 5200 / 5300 series
Автор: AST x MOTON Suspension
Загружено: 2021-10-12
Просмотров: 2119
This short video provides torque specifications for the AST Suspension 5000 Series.
It covers the 5100, 5200, and 5300 models, as well as the non-inverted version of the 5000 series.
Torque Specifications Summary:
Chrome cylinder to outer case: 30 Nm / 22 ft-lbs
Spring platform: 5 Nm / 3.6 ft-lbs (Do not overtighten)
Center nut: 100 Nm / 74 ft-lbs
Flange nuts: 40 Nm / 30 ft-lbs
Top mount bolts: 25 Nm / 18 ft-lbs
Rear center nut: 50 Nm / 37 ft-lbs
Preparation Notes:
Clean the top pin using Loctite SF 7063.
Apply Loctite 243 Blue to secure the top mount to the top pin.
For any questions or comments, please contact us at info@ast-suspension.com.
Thanks for watching!
