Tamiya Holiday Buggy DT-02 Build Part One
Автор: Rob Brennan RC
Загружено: 2021-03-09
Просмотров: 934

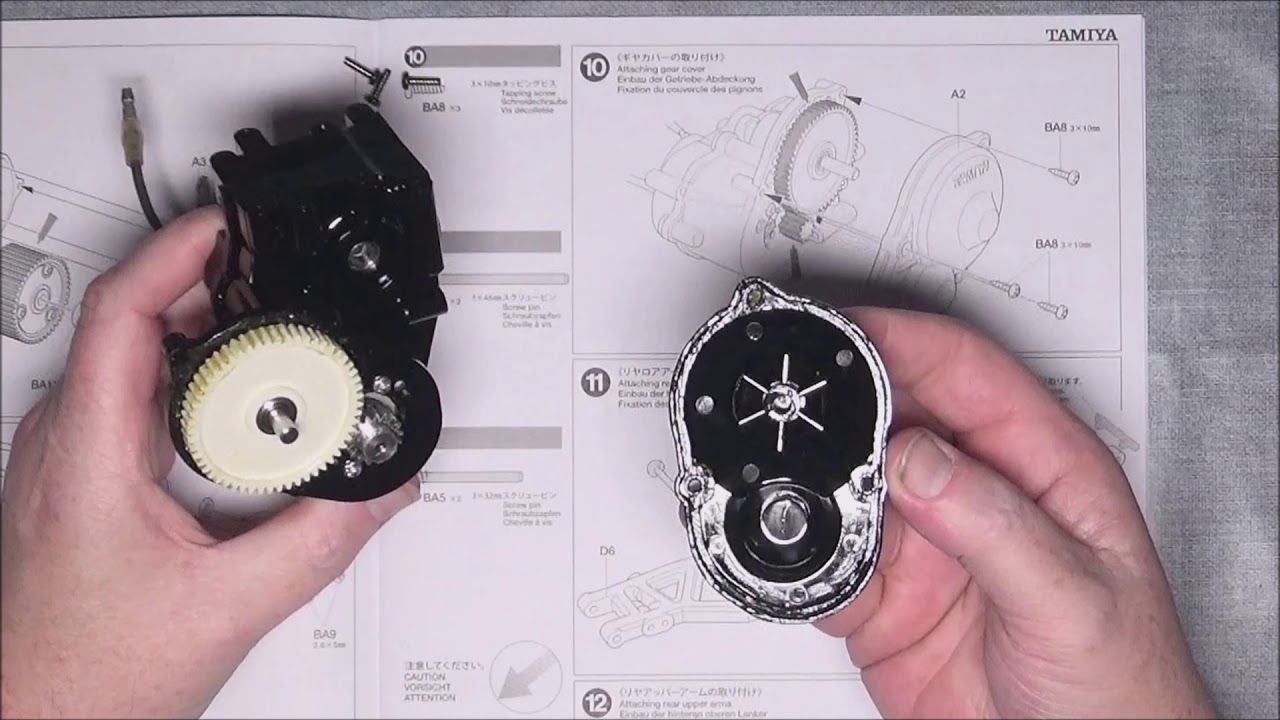

Hello and welcome to the first of mu build videos of the Tamiya Holiday Buggy on the DT-02 chassis. Today I will be covering steps 1 to 7 of metal parts bag A, making up the rear diff and gearbox.
Features:
1:10th scale self assembly kit of the special edition Holiday Buggy
Durable blue coloured polyethylene (PE) moulded body shell
Includes driver figure
380 size electric motor
Ribbed front and spike rear tyres
Reliable 2WD DT-02 chassis
Double wishbone suspension
Sealed gearbox
Flat bottomed bathtub chassis
Length: 390mm
Width: 240mm
Height: 164mm
Wheelbase: 260mm
Ground Clearance: 26mm
Weight: 1250g
Rear Wheel Drive 2WD
Tyre Width/Diameter: F=22/81mm, R=39/86mm
Tread: F/R=217mm/208mm
3-Bevel Differential Gear
2-Piece Steering Tie-Rod
F/R Double Wishbone Suspension
Gear Ratio=15.77:1
When installing a regular sized motor such as a 540, the following parts are required:
0.32 Pitch 17T Pinion Gear and grub screw
Motor Plate (4305125)
