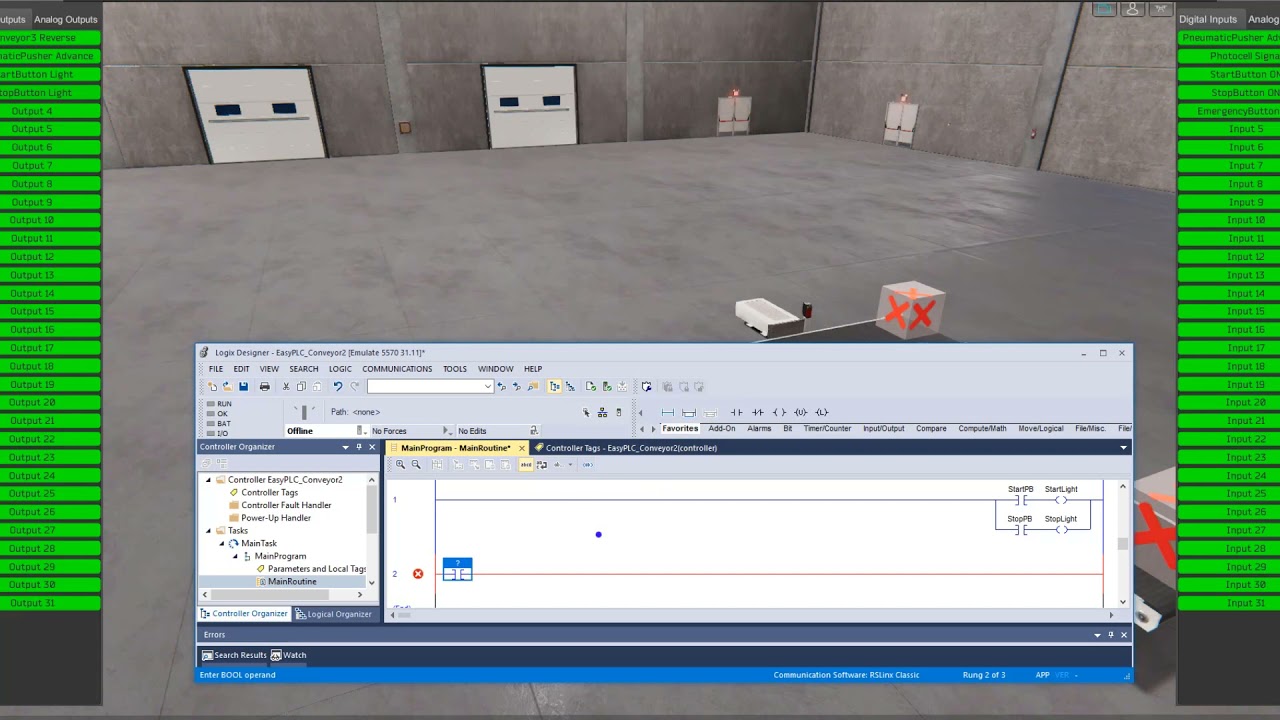

EasyPLC Machine Simulator Box Sorting Using Studio 5000 with Rslinx OPC

This is the EasyPLC software suite & in their video, I am using the EasyPLC Machine Simulator with Studio 5000 through RSlinx Classic OPC.

EasyPLC software suite is much better than FactoryIO & is a much better cost so I am showing this because we all need a great resource to learn automation controls for the manufacturing environment.

This video shows how to test the demo to understand the scope of how the process works then gives an example of the inputs & outputs needed.

This way, you have an easy way to understand the scope of work then you can program the PLC logic to function as designed.

A great way to be proficient in PLC programming.

EasyPLC & Machine Simulator also has its own PLC coding logic if you do not have PLC software, further software is needed. It also works with all major brands like Rockwell Automation, Semiens, Codesys, & more.

I will be using Rockwell Automation's Studio 5000 with an RSLinx OPC server in this PLC programming example.

0:00 EasyPLC Machine Simulator Working
1:40 Showing the list of pre-built machines
2:00 Starting the Easy Transfer Line Machine example
2:20 Using the View IO tab to control devices
2:34 Adding our PLC tags in Studio 5000
6:30 Programming the PLC logic in Studio 5000
11:05 Downloading the PLC logic to Studio 5000 Emulator
13:10 How to fix a download issue in Studio 5000 Emulator
13:55 Adding the OPC topic in RSLinx
14:15 Configuring the Machine Simulator 3
17:50 Checking the OPC Topic Connection
18:30 Testing the PLC logic using Machine Simulator
19:55 Testing the Stop. Start, & E-stop buttons
21:00 Restarting the machine
22:15 Exit to menu
24:15 EasyPLC ladder logic programming software
25:30 Recommended videos for you

The first video:
   • EasyPLC Machine Simulator OPC Setup With S...

I hope it helped.

Thank you for watching the video.
