14" NIKON "HORIZON 14E" Optical Comparator

https://www.machineryvalues.com/inven...

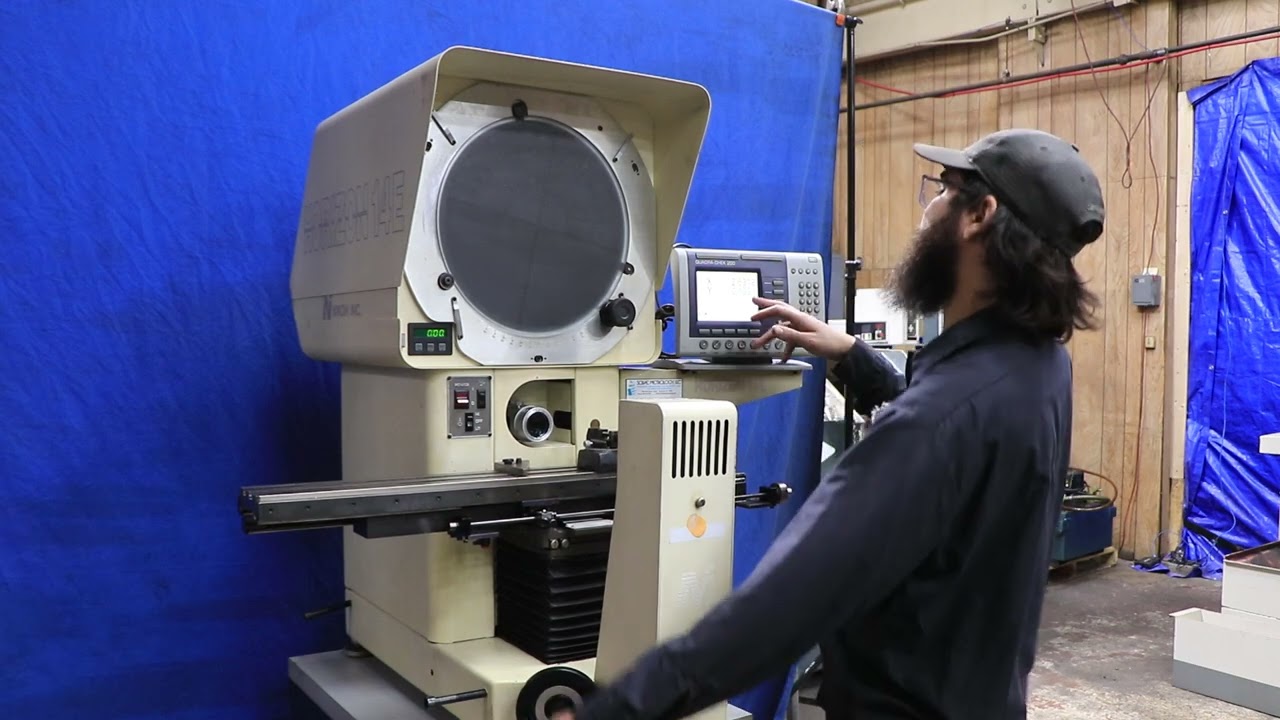

14" NIKON "HORIZON 14E"
Optical Comparator


s/n: 0007 New: 2007

"The Nikon Horizon 14E offers the finest
resolution, clarity, contrast and edge-to-edge
image sharpness available in a 14" comparator.
Ruggedly built and easy to operate, the
Horizon 14E promises years of trouble-free,
accurate measuring and inspection."

"Its new erect image is shown on a vertical
screen, which means that a user doesn't have
to lean over the comparator to see the screen.
It also has fully corrected surface illumination
for maximum ease in observing
and measuring samples."

Optics
The Horizon 14E features superb Nikon
quality optics for bright, high contrast images.
Choice of 5x, 10x, 20x, 25x, 50x,
and 200x objectives.

Glass Screen
14" round glass screen rotates a full 360° for
easier measuring of critical parts.

Built-in Quartz Halogen Illumination
Powerful 24V/150W built-in quartz halogen
illumination for surface and profile inspection
and measurement. Color temperature is
maintained throughout the life of the bulb

Linear Encoder Stage
Large linear encoder stage with twin integral
universal dovetail slots for quick and easy
parts fixing.
Digital ProtractorDigital protractor with degrees,
minutes or decimal degrees. Both incremental
and absolute modes with zero reset.

Erect Image
Erect image (top is top, left is right) offers a
fully corrected surface illumination image.

Ergonomic Screen Design
The vertical screen has been ergonomically
designed to provide greater viewing comfort
for longer periods of time.

Durable Stage
Durable, cast iron "precision grinder style"
stage with lower bearing bias.

.001mm/.00005 inch scales
Ultra-accurate, non-contact .001mm/.00005"
resolution scales are now standard.

Rotary Screen Protractor
Features a stainless steel rotary screen
protractor. More accurate and much easier
to view as the graduation spaces are further
apart. The unit will also integrate into a
digital protractor.

X-Axis Drive Mechanism
The X-axis drive mechanism has been
designed to use a threaded lead screw
with a quick release.

Standard Stage Travel:
. Standard stage travel is now 10- × 6-in.,
and optional stages can accommodate up
to 20- × 6-in. samples.This unit also has
a larger stage top plate (18- × 5-in.) and
integrated end trays and dual dovetails
for easier fixturing of samples (up to 100 lb).

Unit weighs 300 lb.

Equipped With:
Quadra Chek 200 DRO, with Programmable
Geometric Features
10X Lens
Cabinet
