2020 Eastern Traildigger 20" BMX Unboxing @ Harvester Bikes

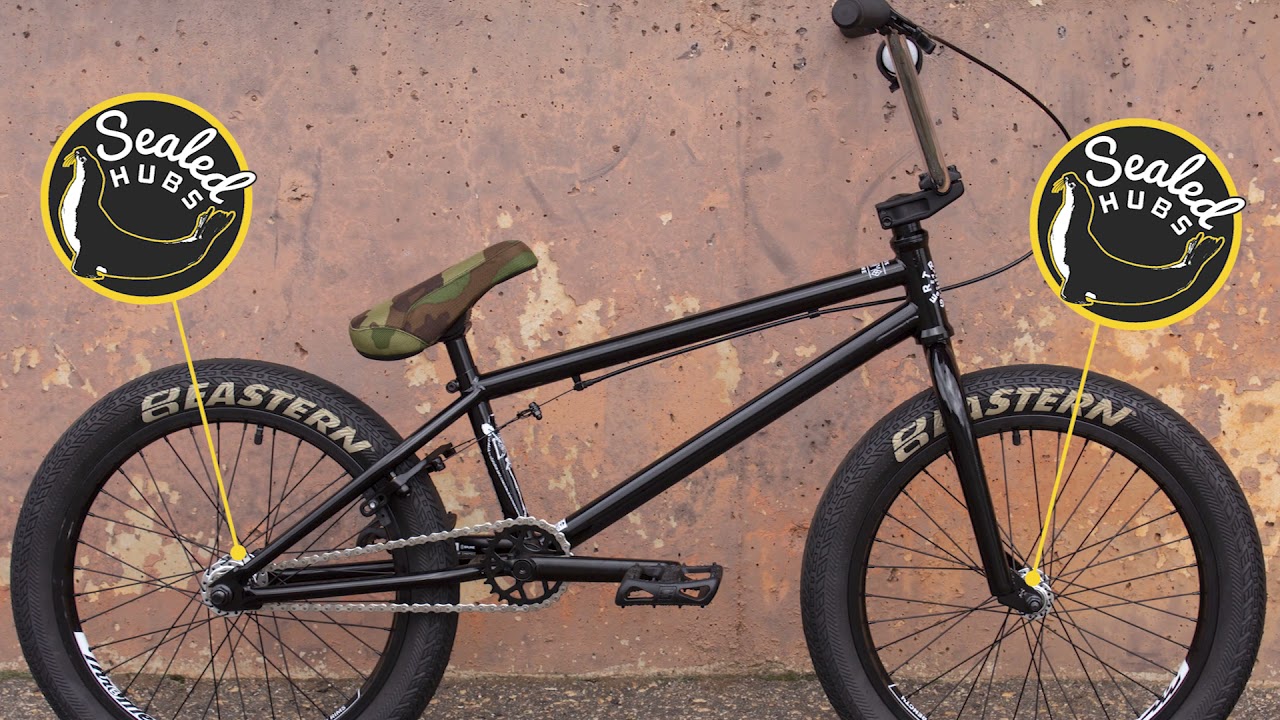

The Eastern Traildigger is back with a newly upgraded full chromo frame and our Facet pedals! Designed for beginners looking to upgrade from a steel frame. This awesome dirt jumper features: sealed bearing integrated headset, sealed rear hub, a 3-piece chromoly cranks, Eastern grips, sprocket and double-wall rims.
25.5 Lbs

NOW with Full Chromoly Frame
Chromoly Steerer Tube
Sealed Rear Hub
3 Piece Cranks
Mid BB
Integrated Headset
Eastern Riblet Grips
Eastern Facet Pedals
Eastern Sprocket
Double Wall Rims
2.4" Eastern Squealer OEM Tires

*NOTICE: Once a bike ships the order can not be refunded. Specs & Pricing Subject to Change

FRAME
Traildigger 20", Full Chromoly

Top Tube Size: 20.75"

BB: Mid

Headtube: Integrated

Chainstay Length: 13.38"

Clamp: Integrated with Frame


BARS
Hi-Ten 8.75"

Upsweep/Backsweep 12°/1_x0081_°



FORK
Traildigger 20"_x009d_, Chromoly Steerer with Hi-Tensile Steel Legs

Fork Rake: 28mm

HEADSET Integrated 45°X45° Sealed Cartridge Bearing

STEM Forged Alloy Top Load Stem

GRIP Eastern Riblet Grips

CRANK 3-Piece, Tubular Heat-Treated Chromoly, Pinch Bolt with 8-Splined Spindle, 170mm 31.8mm Square Tapered Arm

BOTTOM BRACKET Sealed Bearing Mid

CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T

CHAIN KMC Z510 1/2 x 1/8

PEDAL New Eastern Facet Plastic Pedal with 9/16" Axle

FRONT BRAKE N/A

FRONT LEVER N/A

REAR BRAKE U-Brake, Forged Alloy, Wide Body, Clear Brake Pads

REAR LEVER Forged Alloy Lever

BRAKE CABLE [S] LINEAR

SADDLE Medium Width Pivotal Seat

POST Pivotal 200mm

FRONT HUB Loose Ball, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle

REAR HUB 5 Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle

FREEWHEEL 9 Tooth Driver with Hub

FRONT RIM
Alloy, Double Wall, Drilled for 36 Spokes

REAR RIM
Alloy, Double Wall, Drilled for 36 Spokes

SPOKES 14 Gauge with Brass Nipples

FRONT TIRE
2.4" Eastern Squealer OEM Tires

REAR TIRE
2.4" Eastern Squealer OEM Tires
