CAM DISPLACEMENT DIAGRAM and CAM PROFILE explained | HSE | Page 8-6 | Grade 11

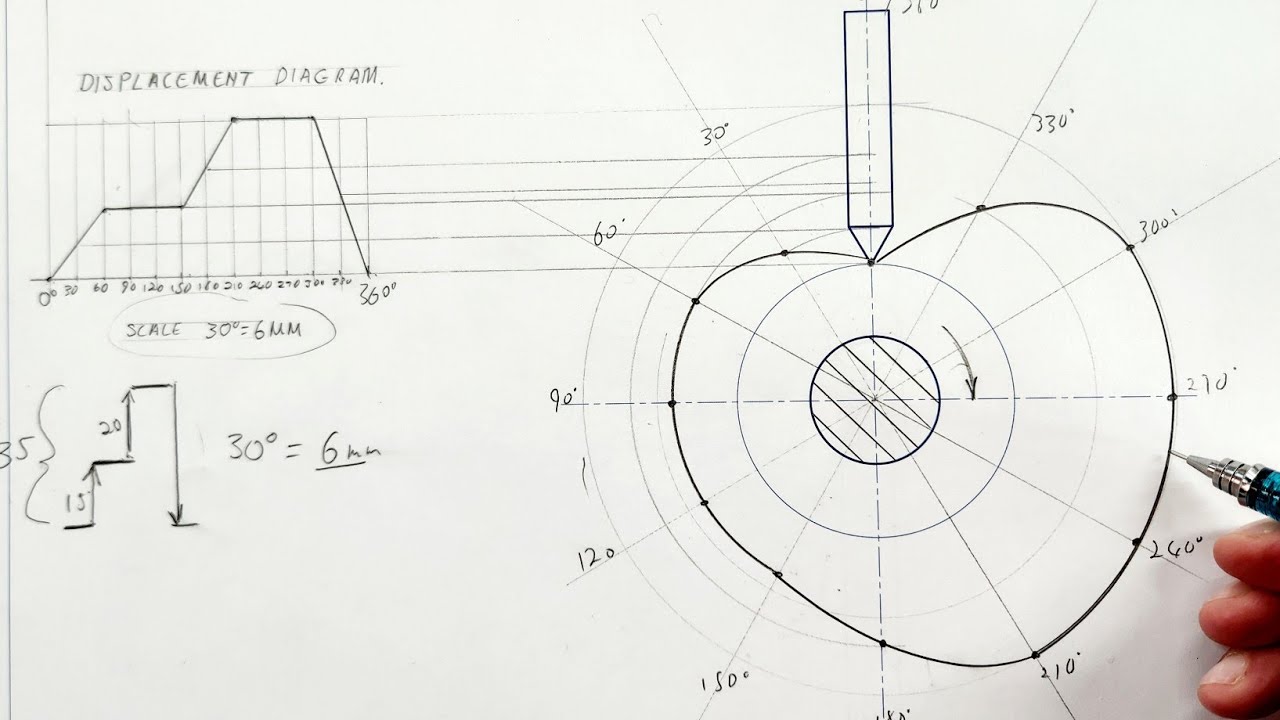

Grade 11 Engineering Graphics and Design Students!! Join me in this live lesson as I talk through how to draw a cam displacement graph and cam follower with a cam profile.

HSE Workbook | Page 8-6 | Grade 11 | Engineering Graphics and Design
How to draw a cam displacement diagram
How to draw a cam follower
How to draw a cam profile
How to draw a cam with uniform motion
How to draw a cam
