Rock Picker and Stone Pickers - Schulte

Rock Picker - Schulte SRW 1400 Windrower & RS320 Stone Picker picking rocks in Michoacán, Mexico

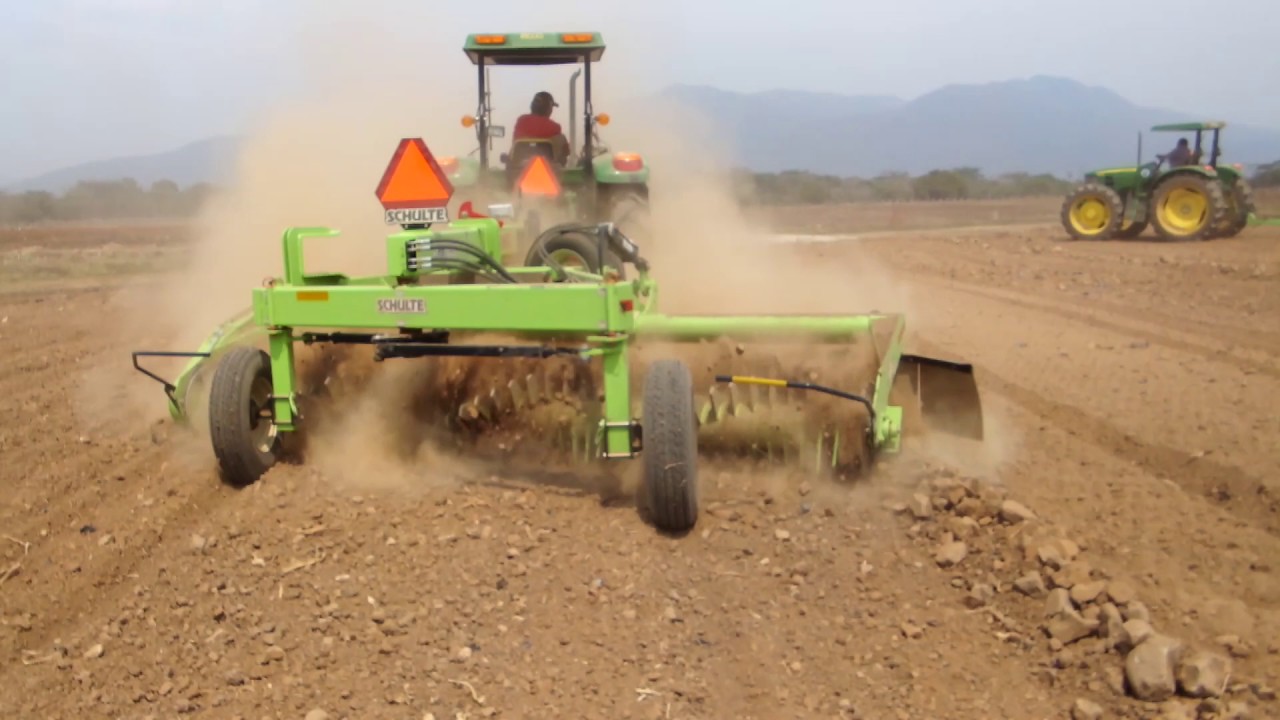

SRW 1400 Windrower

-Transports at an ultra narrow width of 93" (2.36 M).

-Windrows 2" to 25" rocks with ease, forming them into neat uniform rows.

-Power is supplied to the windrower drum via a heavy duty PTO drive line which includes a slip clutch and shear bolt arrangement for protection against excessive shock loads.

-The final drive chain is totally enclosed for longer service life.

-The windrower drum is 14 feet (4.27 M) wide and is constructed of 8 5/8 inch (219mm) heavy wall HSS tube.

-Hard surfaced, 5/8 inch (15.9mm) x 6 inch thick(152.4mm) long teeth are welded directly to the drum pipe, resulting in problem-free operation even in difficult conditions.

Brochure Link:
http://schulte.ca/broch_SRW1400%20Win...


RS320 Rock Picker

-The RS320 features an extra large 3.2 cubic yard (2.43 m3) hopper for greatly increased rock removal efficiency. The RS320's hopper has twice the capacity of an average rock picker hopper.

-The RS320's new T-iron tapered grate with 3/4" bottom and 1/2" top material virtually eliminates all small rock jamming.

-Ideal for today's zero till market. The 48" grate will pick at least 50% less dirt, & trash than most conventional reel type models.

-Large, flotation type, all weather 16.5 x 16.1 tires are mounted on high capacity eight bolt wheels and hubs.

-The RS320 Rock Picker removes surface rock from 2 to 28 inches (50 to 700 mm) diameter.

Brochure Link:
http://schulte.ca/broch_RS320%20Rock%...

www.schulte.ca
Schulte Industries
Box 70
Englefeld, SK
S0K1N0

Tel: 306-287-3715
