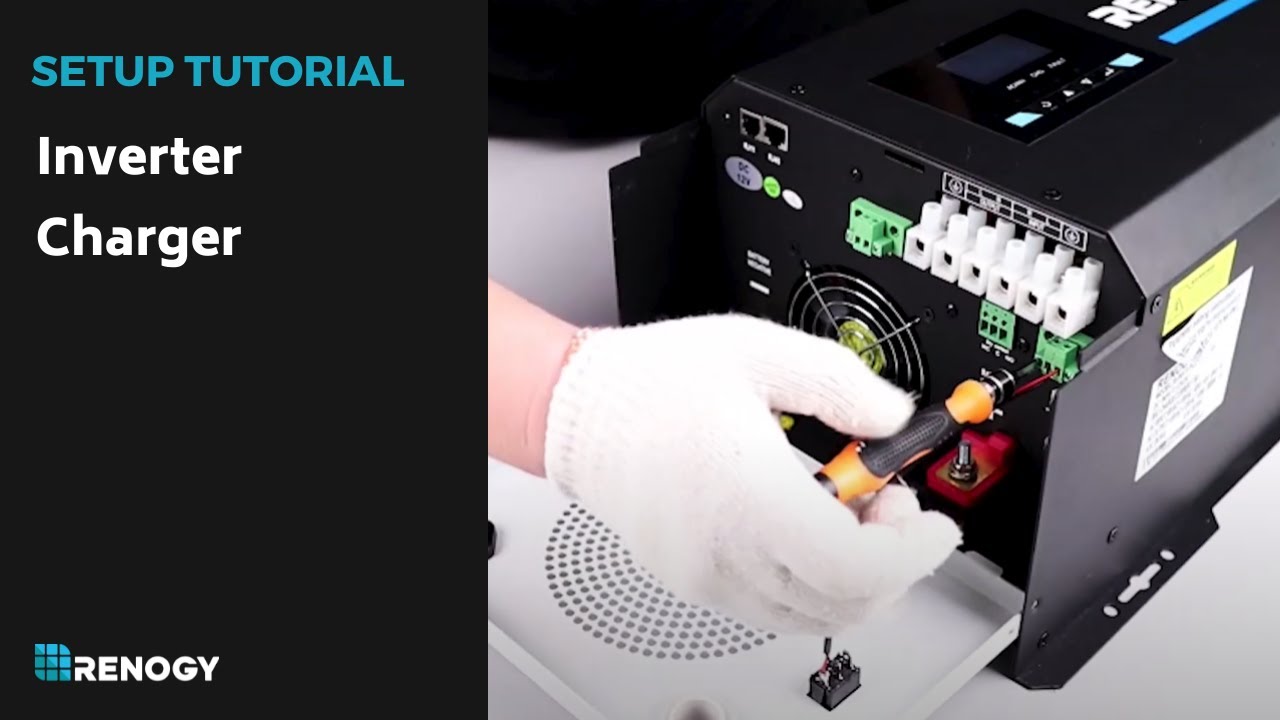

Renogy Inverter Charger Installation & Setup | Part 1

We show you, in detail, how we installed the Renogy Inverter Charger in our campervan. This video will give you all the information you need to install your inverter charger.

You may have purchased the inverter charger but need help with the installation. Or, you want to know more about the inverter charger before buying one. This video will help you!

We discuss the installation location, ventilation requirements, AC cables, DC cables, RCD requirements and how to set up the inverter charger to work for your camper's electrical system.

—————————————————————————

Do you have questions about installing your Renogy Inverter/Charger?
Jolly provides in-depth guides and resources to help you install, set up, and use your Renogy inverter charger. Https://www.vandercampadventures.com/...

—————————————————————————

NOTE: As mentioned in the video, the electrical fuseboard is NOT to current regulations; it is a temporary installation allowing us to make this video.
Also, you may have noticed the untidy brown tape on the DC cables. The tape is temporary until the heat shrink is installed.


We made this video to help novice and experienced installers alike. Please note that we detail how WE installed the inverter charger. Your electrical system may be different. Always read the manual and seek expert electrical help if you need it.


Was this video helpful to you? Do you have any hints or tips to add? Please leave a comment.

Thanks for watching! In PART 2 we discuss the electrical design and installation in more detail - Check it out here -    • Renogy Inverter Charger Installation - Par...

—————————————————————————

Chapters ⌛

00:16 - Introduction
02:37 - Installation - Location
05:12 - Installation - Measurements
06:24 - Installation - Airflow & Ventilation
08:24 - Installation - EMI & Gas
09:10 - Installation - Fixings
09:47 - Installation - Close To The Battery
10:06 - NOTE: Voltage Drop
11:28 - Electrical Panel
13:17 - Wired Remote Control
15:55 - DC Battery Wiring

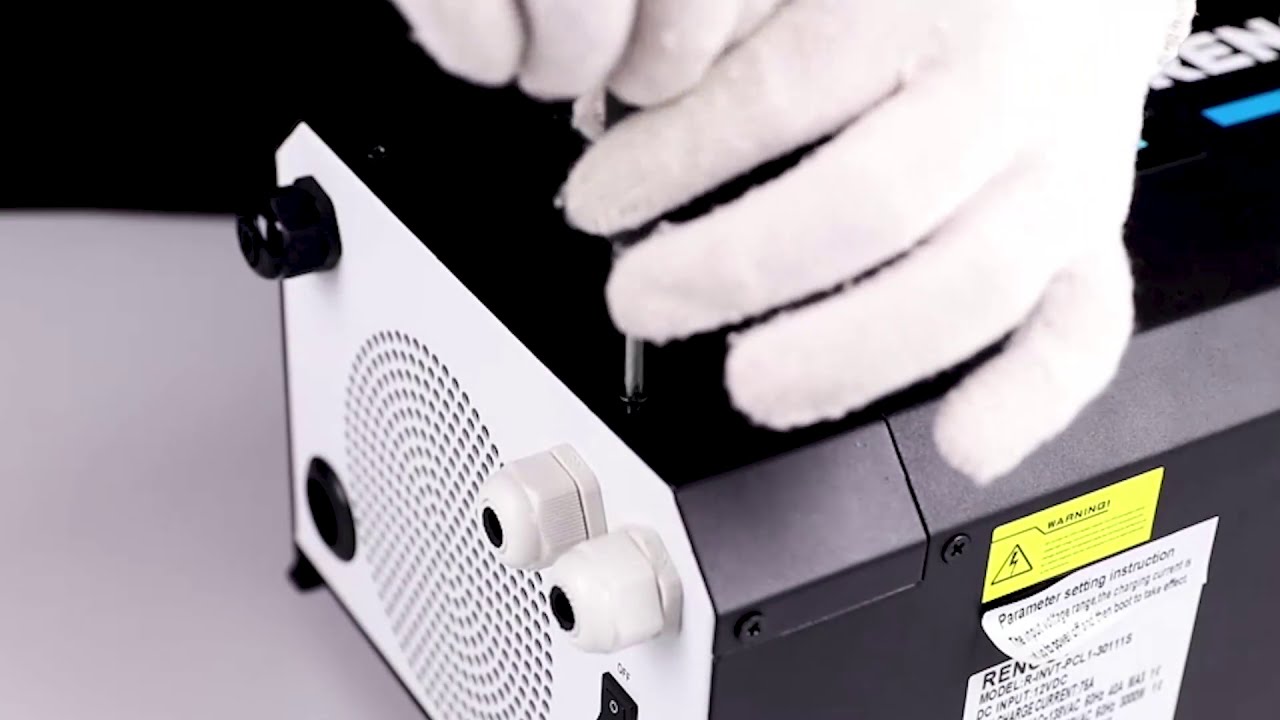

18:13 - AC Wiring
19:53 - AC Wiring - Ferrule Cable Connections
21:10 - AC Wiring - Cable Size & Type
24:49 - AC Wiring - Fusing And Cable Protection
28:05 - 'Do I Need An RCD?'
32:27 - A Note On Centre-tapped Inverters
34:12 - Grounding
38:36 - Battery Temperature Sensor (BTS)
38:47 - Display Panel
40:21 - Programmable Features
50:48 - Recap


—————————————————————————

Video References 🎥

Installation guides and resources - www.vandercampadventures.com/renogy-inverter-charger-installation/

2000w Renogy Inverter Charger - https://shrsl.com/3wn5c
3000w Renogy Inverter Charger - https://shrsl.com/45u9s

PART 2 - Renogy Inverter Charger Installation | Complete Guide and RCD Protection -    • Renogy Inverter Charger Installation - Par...

Blog Post - Currently in progress.

Renogy Inverter Charger Manual (V3.0) - https://store-nkm2yhe9h8.mybigcommerc...

How an RCD works - https://electrical.theiet.org/wiring-...

Frequency (Hz) for each country table - https://www.electricaltechnology.org/...

Measurements for installation and ventilation - 600mm x 300mm

AC Cable - 6mm 3-core flex (We used artcic blue flex because it was left over from another project)

DC cable - 35mm Tri-rated DC cable - https://ebay.us/bqZiLd

DC cable lugs - 35/8 (35mm x 8m hole) - https://ebay.us/fIVWVo

Grounding cable size - 8 AWG / 4mm
Grounding terminal nut size - 7mm / M4



Tools 🛠️

Screwdriver set -
Socket set -
Electrical Digital Multimeter - https://simplysplitcharge.co.uk/digit...


Materials 🛒

DC cable lugs - https://ebay.us/fIVWVo
Ferrule's - https://ebay.us/1ArJdF
Heat shrink - https://ebay.us/wIfgS6 / https://ebay.us/1VcLPB
Drop out vent 75mm - https://ebay.us/JxFCTS
200A Mega fuse - https://ebay.us/ctvWKX
Mega fuse Holder - https://ebay.us/DBh6Pf
300A Isolator - https://ebay.us/AslC8l
35mm DC cable - https://ebay.us/bqZiLd
6mm 3-core flex - https://ebay.us/TJiMWQ
