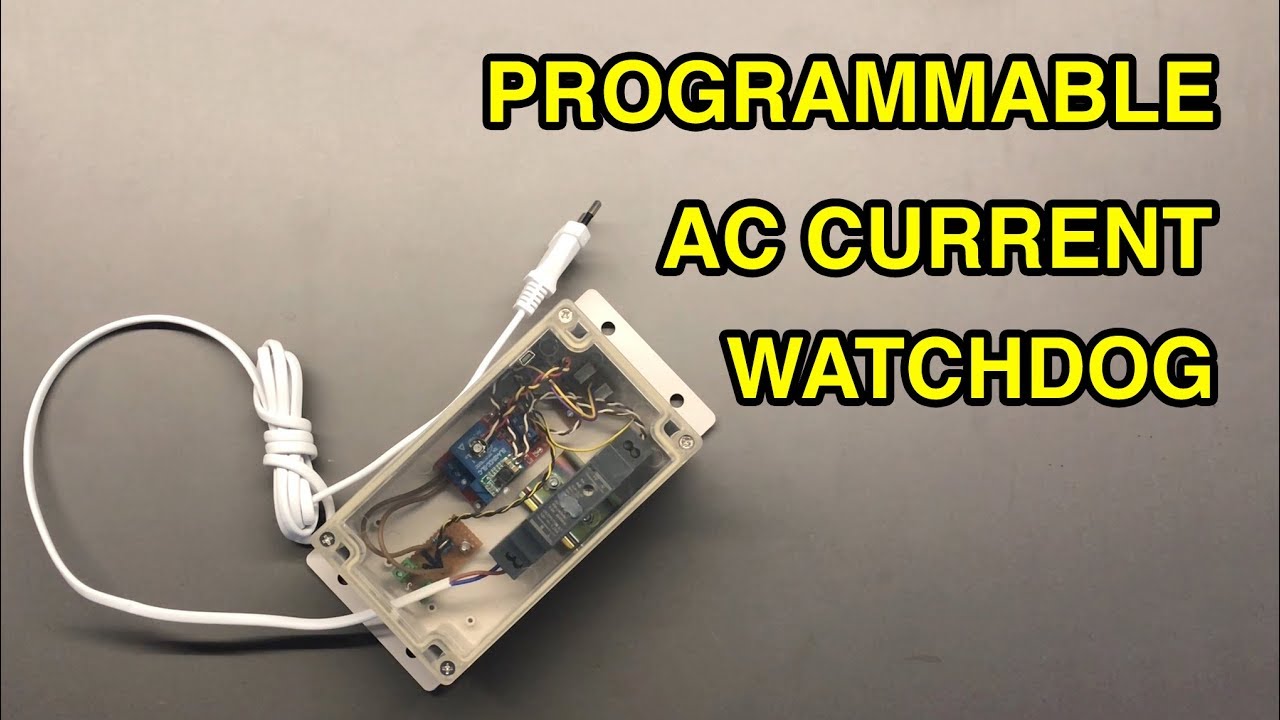

AC Current Monitor Watchdog - Current Donut Arduino Controller
Автор: darieee
Загружено: 2019-06-30
Просмотров: 830
Index
0:00 - Hardware
13:41 - Software
31:45 - Calibration Demo
43:16 - Watchdog Functionality Demo
Description
This widget's purpose is to monitor the AC current passing through a conductor, and, based on predefined thresholds, control a relay and cut off power to said machinery that is drawing an unexpected (higher/lower) amount of current.
This thing could really use a screen and a rotary encoder ... but, alas, the time budget was rather constricting and, those'll be for future revisions.
Parts List
25A Current Donut Module : https://bit.ly/2XD1Qgg
5A Current Donut Module : https://bit.ly/2RJKYPh
Beefy "30A" Relay Module : https://bit.ly/2XMspQh
Tiny Buck Converter : https://bit.ly/2Nm3vCX
NeoPixel LED : https://bit.ly/2XbR0JJ
