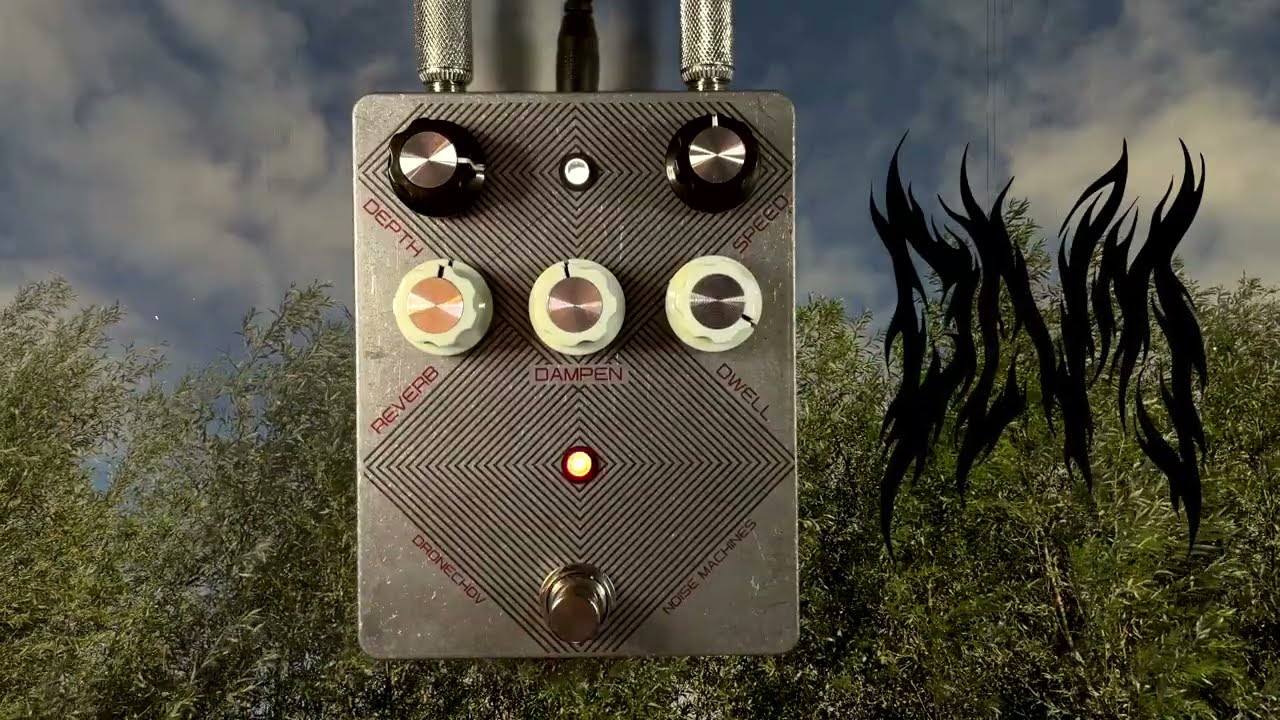

The Dronechov Noise Machine (Delay + Reverb + Modulation)

A delay, reverb and modulation pedal based on EQD Disaster Transport JR and All Star Reverb (http://effectslayouts.blogspot.com/20...) with added modulation for the delay part, which in turn, can modulate the reverb too.

Delay - Standard delay controls - Mix (Delay), Tone, Time, Feedback (Regen)

Modulation - Main modulation switch toggles between Off (centre), Modulated delay (left), Modulation only (right). Rate and Depth controls for when modulation is on (D or M). Modulation wave shape switch toggles between sine-wave and square-wave.

Modulated Delay (D) - only the delayed signal is modulated. Standard Delay controls are applied here with addition to the Rate, Depth and Waveform.

Modulation only (M) - When the Main modulation switch is in Modulation only (M) position the Delay is bypassed and the Delay knob controls the amount of the modulated signal (Mix), Tone controls the modulated signal's tone, and Regen controls the feedback of the modulated signal

Effect order switch sets the Delay and Reverb order:

D - R = Delay into Reverb
R - D = Reverb into Delay

The momentary OSC switch gets the Delay/Modulation into self oscillation

Reverb - Mix (Reverb), Damp and Dwell controls

Toggle switches settings:

M, R - D = Modulated Reverb
M, D - R = Reverberated Modulation
