1 22 Hibbeler Internal Loadings in Metal Stud Punch

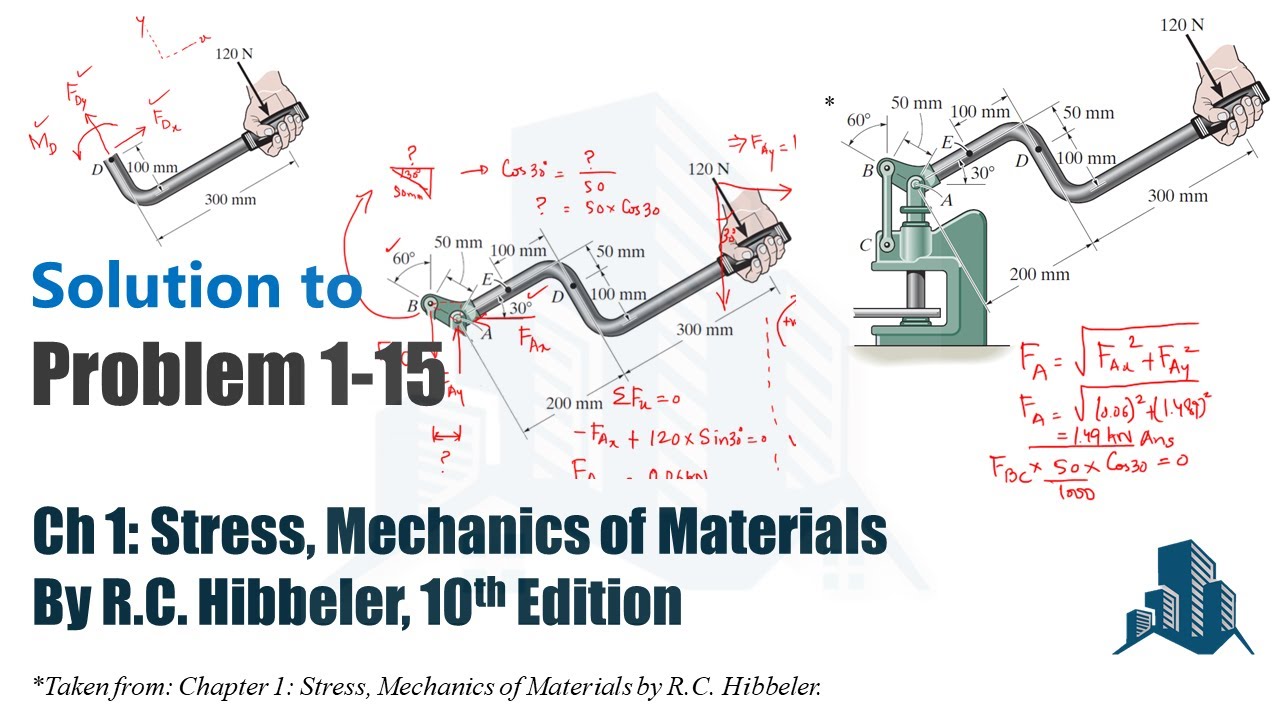

The metal stud punch is subjected to a force of 120 N on the handle. Determine the magnitude of the reactive force at the pin A and in the short link BC. Also, determine the resultant internal loadings acting on the cross section at point D. #1.22 Hibbeler 10th edition
