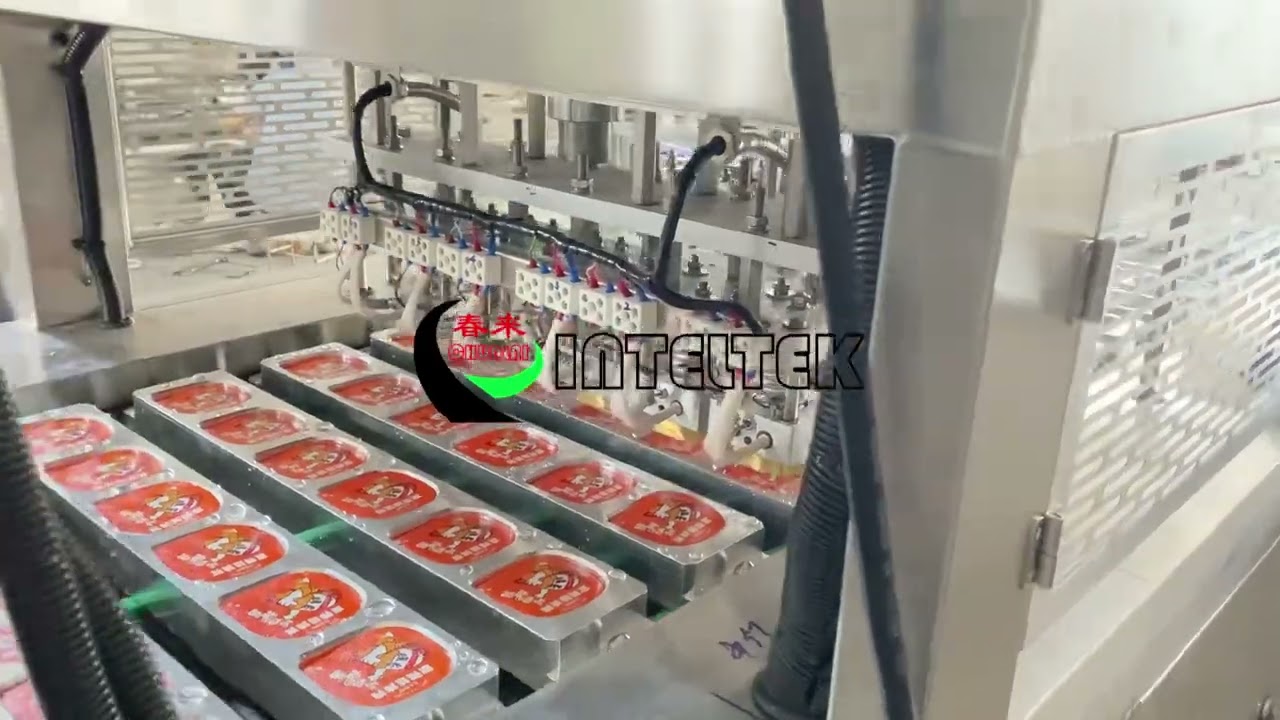

Automatic inline type dipping sauce cup filling sealing machine
Автор: Wenzhou Chunlai Packing Machinery Co., Ltd.
Загружено: 2025-07-03
Просмотров: 127
Automatic inline type dipping sauce cup filling sealing machine
WhatsApp:+86 138 0687 3870
Automatic Inline Type Dipping Sauce Cup Filling and Sealing Machine is a fully automated packaging solution designed to fill small portions of dipping sauces, condiments, or pastes into cups and seal them hygienically. It is widely used in fast food, catering, airline, and retail sectors for products like ketchup, mayonnaise, chili sauce, soy sauce, salad dressings, and other viscous condiments.
🔹 How It Works
Cup Feeding / Denesting
Empty cups (plastic, PET, or PP) are automatically fed into the inline conveyor.
Optional sterilization step using UV or HEPA-filtered airflow to maintain hygiene.
Sauce Filling
Servo-driven piston filler or peristaltic pump dispenses precise portions of sauce into each cup.
Can handle liquid, semi-liquid, or viscous sauces, including those with small particulates (e.g., seeds, garlic).
Filling volume adjustable according to cup size (10–100 ml typical).
Lid / Film Placement
Pre-cut foil lids or roll-fed film is applied on top of each filled cup.
Heat Sealing
Heat sealing ensures leak-proof, tamper-evident, and hygienic packaging.
Optional Features
Nitrogen flushing / MAP for extended shelf life.
Date coding / batch printing on lids or cups.
Integration with wafer, biscuit, or dipping snack packs.
Discharge / Collection
Sealed cups are ejected onto conveyors for tray packing, carton boxing, or multipack wrapping.
🔹 Key Features
Fully inline operation: continuous flow for high-speed production.
Hygienic design: stainless steel construction, easy to clean.
High accuracy filling: ± 1.5% g or ml per cup.
Versatile: handles a wide range of sauces, pastes, and dips.
Output capacity: 3,000–12,000 cups/hour depending on the model and cup size.
🔹 Advantages
Reduces labor and contamination risk.
Consistent portion control for retail and catering.
Compact inline layout saves space on production lines.
Can be integrated with snack or meal packaging lines.
✅ Summary:
An Automatic Inline Dipping Sauce Cup Filling and Sealing Machine automates cup feeding → precise sauce dosing → lid placement → heat sealing → coding → discharge, producing hygienic, leak-proof, and ready-to-use condiment cups at high speed.
