Flashing the RadioMaster TX16x Internal ELRS Module v3 3 2

Flash the Internal Module TX16S FROM
Current Version 3.0.1 - TO 3.3.2
Current ELRS Configurator = 1.6.1

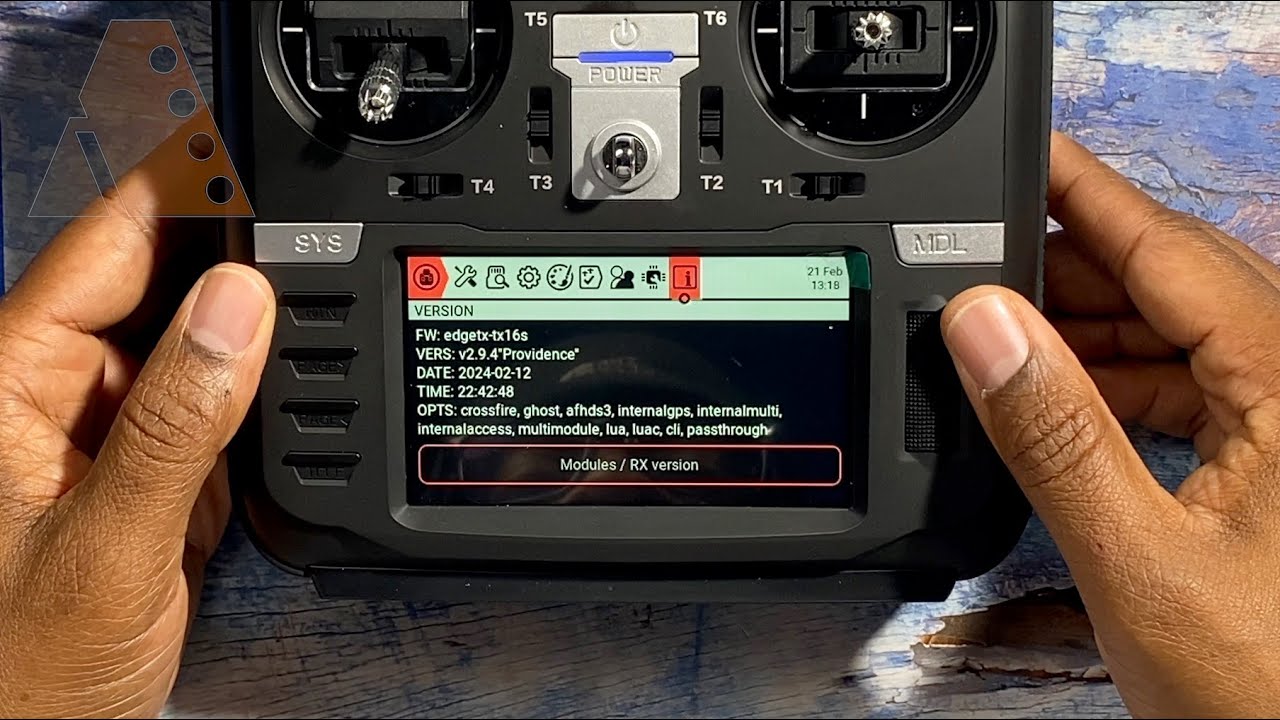

Check the current version on your radio
Go to main screen
Plug in USBC connector
Select - USB Serial (VCP)
Go to ELRS GIT HUB
Download latest version of configurator for your system
Mine is Mac
Ignore the blockmap version (as a beginner you do not need it)
Also look at the information in the readme below There are tips that may be beneficial
Run the installer
Open configurator and go to Official Releases
You can uncheck pre-releases or just ignore any release with - RC* behind it.
Go to Target and find the correct Target
Mine is Radiomaster 2.4 GHZ
Choose the correct Device
Mine is Radiomaster TX16s INTERNAL 2.4 TX
Flashing method - Choose EdgeTXPassthrough
Also Download the LUA Script (Put it on your SD card once the Flash is complete) ***
Choose Standard Mode
Regulatory Domain - for Me is ISM_2400
Check Binding Phrase an put in your selected Binding Phrase
Mine - ATEXC69!
Ignore NO_SYNC_ON_ARM
CHECK FEATURE_OPENTX_SYNC
Ignore TLM_REPORT_INTERVAL_MS
CHECK AUTO_WIFI_ON_INTERVAL
MAKE MINE 120
SET YOUR HOME WIFI INFO - IF DESIRED
UNDER ACTIONS BE SURE TO CHOOSE THE CORRECT DEVICE
YOU MAY NEED TO DOWNLOAD AN STM DRIVER
CLICK BUILD AND FLASH
ONCE COMPLIED YOU SHOULD SEE SUCCESS
DISCONNECT THE RADIO
OPEN UP YOUR ELRS LUA AND VERIFY THAT YOU HAVE THE CORRECT VERSION INSTALLED

NOTE BE SURE TO UPDATE YOUR LUA TO THE CORRECT VERSION BY DROPPING IT INTO THE SCRIPTS/ TOOLS FOLDER ON THE SD CARD.

ALL DONE!

Links
STM Driver: https://www.st.com/en/development-too...
ELRS GITHUB: https://github.com/ExpressLRS
