Modeling Jacket Geometry in SACS (Part 1)

Learn how to model a jacket-type offshore structure from scratch using SACS in this step-by-step tutorial.

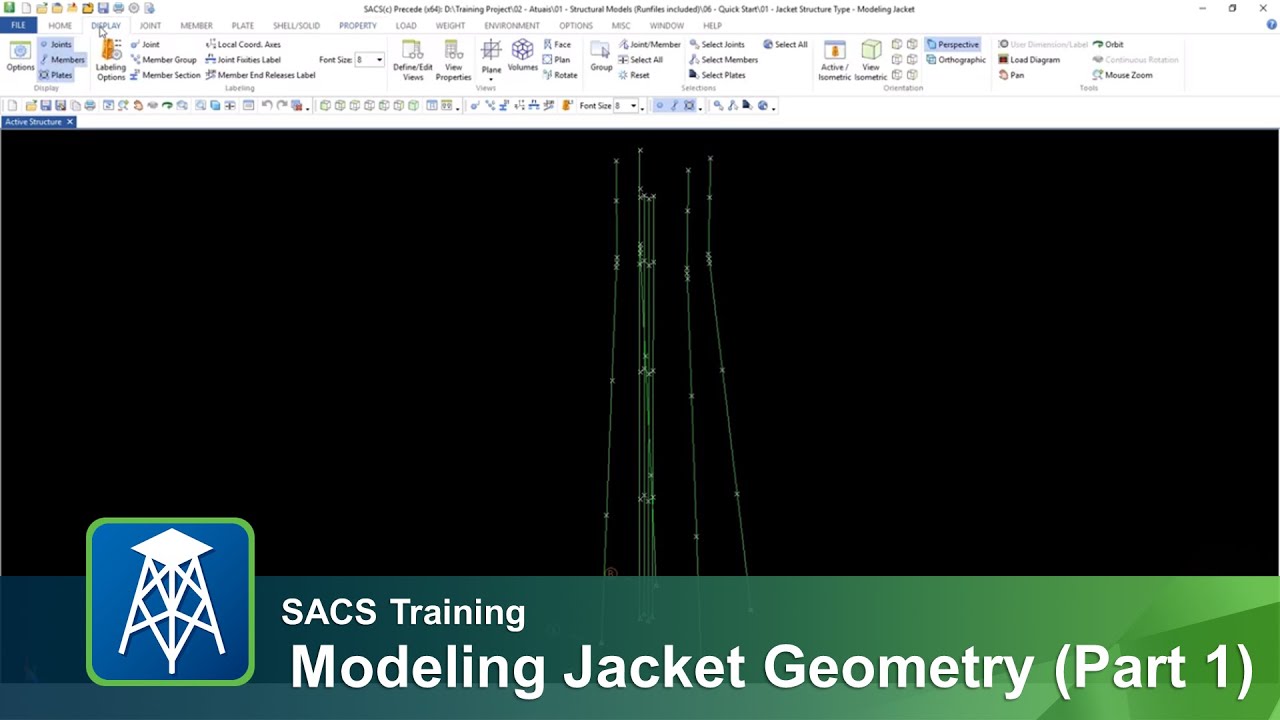

This video guides you through the entire process in the SACS Precede Modeler. We'll start with the structure definition wizard, define key elevations (including water depth and mudline), and set up the model's legs, piles, and conductors. You'll also learn how to assign tubular member properties, create member segments, and build the horizontal framing for the jacket.

This guide is perfect for structural engineers, students, or anyone interested in learning the fundamentals of offshore platform design with SACS.

If you find this SACS tutorial helpful, please give it a like and consider subscribing for more engineering content!
