Calculation of Ripple Factor and Ripple Voltage for Half wave Rectifier and Full wave Rectifier

In this video, the ripple voltage and the ripple factor for half-wave and full-wave rectifier have been calculated.

By watching this video, you will learn the following topics:

0:00 Introduction

0:40 Calculation of Ripple factor for the half-wave rectifier

3:28 Calculation of Ripple factor for Full wave rectifier

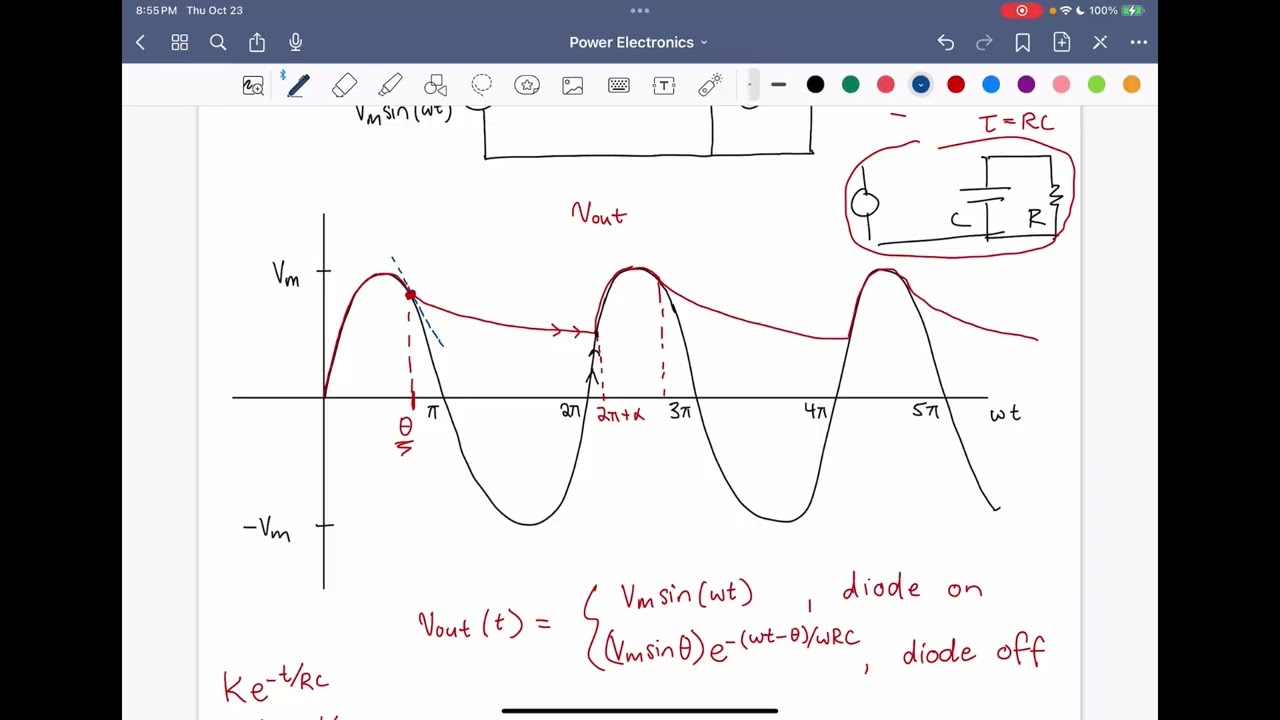

5:30 Calculation of ripple voltage and ripple factor for Half wave rectifier (with RC filter)

16:39 Calculation of ripple voltage and ripple factor for Full wave rectifier (with RC filter)


Ripple factor of Half-wave Rectifier = 1.21

Ripple factor of Full-wave Rectifier = 0.483

Peak to Peak ripple voltage of Half wave rectifier (with RC filter) = Vm / R*f*C

Peak to Peak ripple voltage of Full wave rectifier (with RC filter)= Vm / 2*R*f*C

Ripple factor of Half-wave Rectifier (with RC filter) = 1/(2√3*R*f*C)

Ripple factor of Full-wave Rectifier (with RC filter) = 1/(4√3*R*f*C)

The link for the other useful videos related to Rectifiers:

1) Full wave Rectifier:
   • Full wave Rectifier Explained

2) Half-Wave Rectifier:
   • Half wave Rectifier Explained

3) How to solve the diode circuits:
   • How to Solve the Diode Circuits (Explained...

4) RMS and Average Value of Half wave and Full wave rectifier:
   • How to calculate the RMS and Average value...

This video will be helpful to all the students of science and engineering in learning, how to calculate the Ripple factor and Ripple voltage of half wave and full-wave rectifier.
