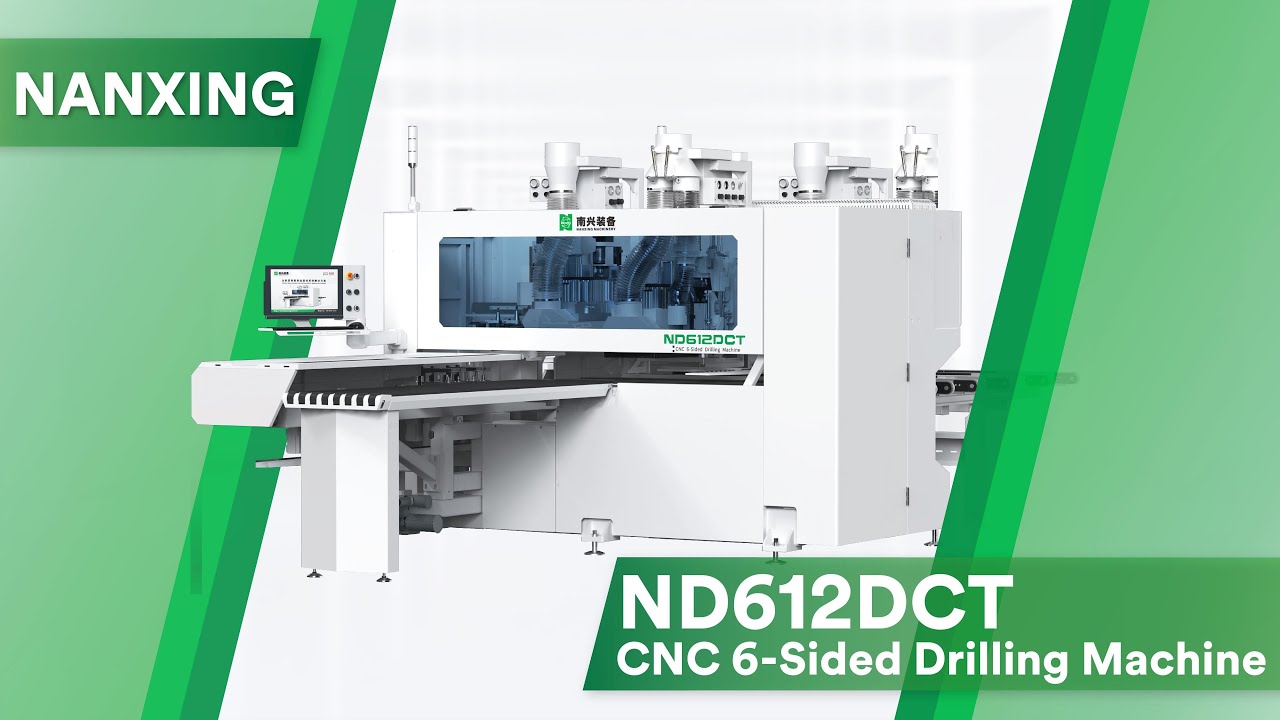

Double spindles! Nanxing CNC 6-Sided drilling machine ND612DCT

🟩Highlight🟩

🟢Processing technology
1️⃣Can complete 6-Sided drilling, front and back grooving,side milling,lamello, Lockdowel,light troughs,ceiling and ground hinge holes. Processing length 200-2800mm,width 30-1220mm,thickness 10-60mm.
————————————————
🟢Symmetrical drilling block
1️⃣Upper unit: symmetrical drilling block,the minimum spacing of vertical holes in the two drill packages is 64mm, vertical drilling 19x2, horizontal drilling X direction: 3x4, Y direction: 2x4;
2️⃣Bottom unit: V9 drilling block;
3️⃣Symmetrical high-speed double drilling block, symmetrical drilling, Advanced algorithm for drilling path;
4️⃣Patented technology:Three-in-one asynchronous drilling technology, two drilling blcoks working independently or collaboratively, driven by servo, to achieve simultaneous drilling in the X, Y, and Z directions of the workpiece, improving efficiency;
5️⃣Each drilling block is calibrated to the micron level using a three-dimensional coordinate measuring machine (CMM) before leaving the factory, strictly guaranteeing the coaxiality and position of all drill bits, thus ensuring the accuracy of hole processing from the root.
————————————————
🟢ATC spindle (with C axis)
1️⃣Equipped with 2-slot tools magazine. It has powerful milling, grooving capabilities and automatic tool changing functions, and the C-axis (5.5KW) has precise indexing and rotation functions (0-360°);
2️⃣The C-axis is the core that drives the cross-angle head to rotate and switch, transmitting the spindle's power and positioning accuracy to the angle head, thereby realizing arbitrary changes in the tool direction to meet the processing needs of special processes;
3️⃣Cross side milling angle head, realizing multi-directional compound milling, adjustable angle single direction head, maximum processing width up to 800mm.
————————————————
🟢ATC spindle
1️⃣The spindle on the right side of the upper processing unit is equipped with an 8-slot tool magazine, which can store 8 types of slotting, milling and other tools;
2️⃣Equipped with a frequency converter, it can automatically adjust to the optimal speed according to the processing material and process (such as milling, slotting), ensuring smooth processing results; the high speed feature is particularly suitable for processes such as slotting and hinge holes;
3️⃣Full bevel and straight bevel processing can realize the processing of complex bevels at any angle to the reference surface, and efficiently complete processes such as chamfering and beveling the edge of the workpiece.
————————————————
🟢Professional control system
1️⃣Advanced algorithm for drilling path, built-in multiple process model libraries, easy operation, and improved processing efficiency.
————————————————
🟢Docking format
1️⃣The program can be edited manually and can also be connected to various formats such as xml, bpp, ban, mpr, etc..

🟩Important configuration🟩

🟢Heavy-duty body
1️⃣Use robot welding, natural aging, annealing, and a five-sided gantry machining center, all steps are processed and formed at one time.
————————————————
🟢Double grippers
1️⃣The gripper can float down without rubbing the bottom surface of the plate. It is equipped with high-precision gear rack and servo drive, with a maximum speed is 135m/min. New feature: Partition protection against accidental touch.
————————————————
🟢Automatic tool setting device
1️⃣Automatically detect tool length to avoid manual errors and improve processing accuracy.
————————————————
🟢Loading and unloading mode
1️⃣Workpieces can be loading and unloading from the fron side or unloading from the back side.
————————————————
🟢Optional
1️⃣Optional: Double spindles of bottom unit
