Let's build 4k5 class D from pdf to sound test..., Free pdf
Автор: general diy
Загружено: 2022-04-14
Просмотров: 9472
How to make a 4k5 class d amplifier circuit.
This circuit works upto 100v 30amp depends upon the components used on board.

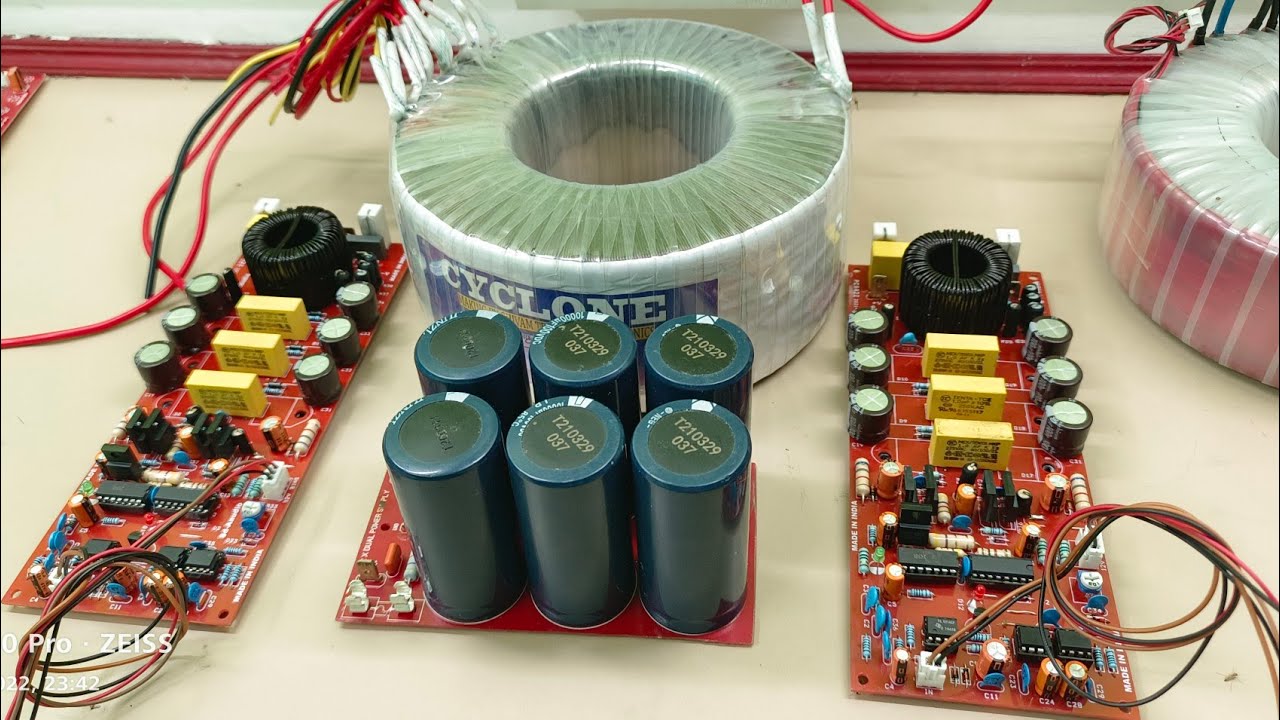

This circuit will will produce a great power if a good power supply used, I am using 50-0-50 14amp toroidal transformer in this project near 980 watt.
This is used for personal use. I am not trying to remove branding of any board in any case it was removed, please comment in comment box with link I will add it in description. I do not want any one suffer loss because of my interest/hobby.
All components are used in this project, is purchased from local Market and it’s easy available in local market or from some website, but some times need to find suitable replacement.
In testing video 2 different PCB used both are given below
All Credit goes to :
PCB 1 (Left side in testing video/ coming soon video):
OLD Class D 4k5 PCB Design pdf: https://drive.google.com/file/d/1Vajs...
PCB 2 (Right side in testing video/making of class d):
PCB Credit : https://www.diyaudio.com/community/th...
PCB PDF: https://www.diyaudio.com/community/at...
PCB top: https://www.diyaudio.com/community/at...
