Ford 6.0 Powerstroke Turbo Rebuild Kit Instructions

Learn How to Rebuild Ford 6.0 Powerstroke Turbo
Buy Turbo Rebuild Kit Here: http://turbolabofamerica.com/garrett-...
Buy 2003 6.0 10 Blade turbine wheel Here: http://turbolabofamerica.com/6-0-powe...

www.turbolabofamerica.com

Buy replacement 6.0 Powerstroke turbo here: http://turbolabofamerica.com/6-0-powe...

Brand New 6.0 Powerstroke Turbo Replacement $700
Not Remanufacured
Fixes Burning Oil Problem (blue white smoke out the exhaust)
Fixes Turbo Spool Problem (VGT vanes and unison ring stick open and caused by rust in turbine housing) (VGT vanes stuck high rpm mode)
Fixes No High Engine RPM Power (Vanes Stuck in Closed Position)
Get It Quickly Down Time To Waste on Turbo Rebuild, Buy New!

Notes: Turbo Differences:

2003 6.0 Powerstroke Specs: 59 X 82 Compressor 66.6 X 72.10 10 Blade Turbine (Has Taller turbine wheel tip height, makes machining required to install turbine in other model turbine housing, vanes are taller and not compatible with other year turbine housings) (2004.5+ has an additional mount on the turbine housing to mount to the pedestal, the 2003 Turbo Doesn’t have This Mount Cast Into The Turbine Housing)
2004 – 2005.5 59×82 Compressor 66.6 X 72 Turbine 13 Blade
2005.5 – 2007 56 x82 Compressor 64.5 X 72 Turbine 13 Blade
2004.5-2007 Powermax Turbo Upgrade 63.5 X 88 GT4088 Compressor Wheel and 2003 66.6 X 72.10 10 Blade Turbine Wheel 175 hp gain without loss of spool.

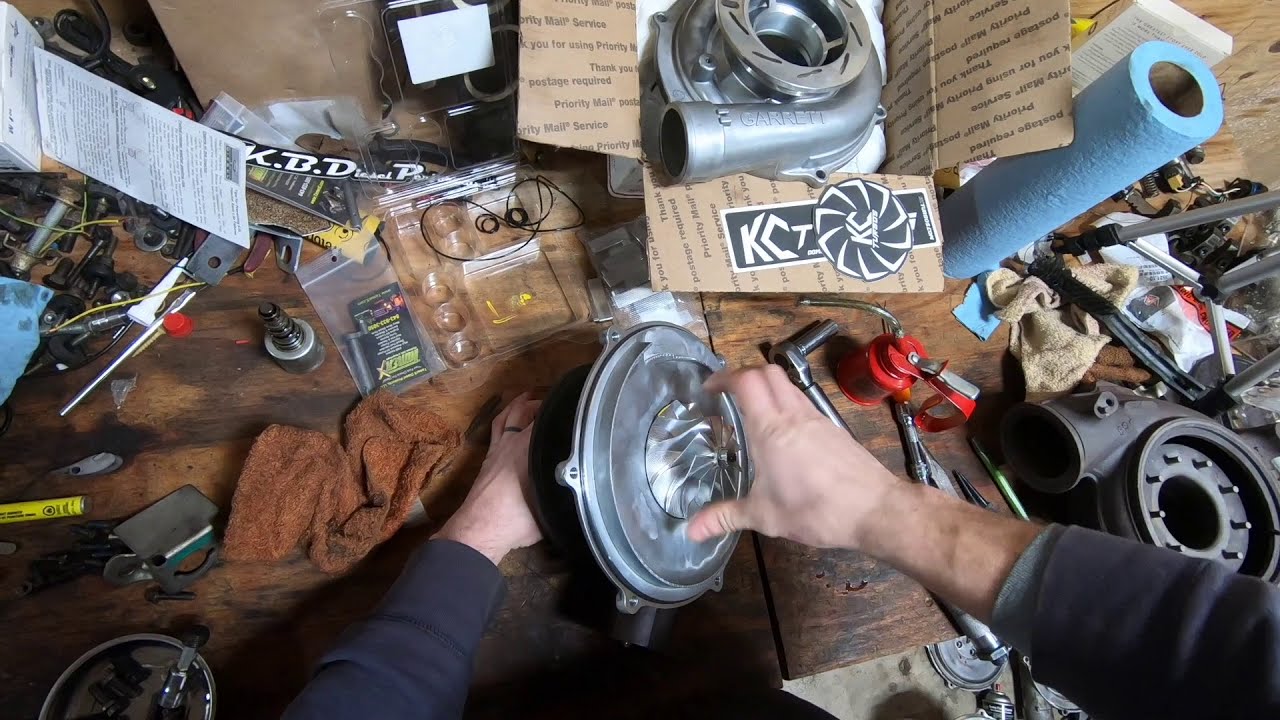

6.0 Powerstoke Turbo Rebuild 2003 – 2007

If You would rather spend time rebuilding you turbo and less money you can watch my 6.0 Powerstroke turbo rebuild tutorial video and buy our rebuild kit.

We Also Sell Powerstroke Turbo Upgrade Parts that do Require Machining, We Do Upgrade Powerstroke Turbos But it is a Time Consuming Process Which I Dont Recommend Unless you can Afford 3-4 Weeks Down time.

6.0 Wicked Wheel 2
2003 10 Blade Turbine 66.6 X 70.2 Turbine
Best Powerstroke Turbo Upgrade
