Connecting Oracle 12c Database using OLE DB through LDAP

Connecting to Oracle 12c databases can sometimes present challenges, especially when trying to implement specific protocols like LDAP. If you’ve found yourself asking, "How do I connect an Oracle 12c database via Oracle Provider for OLE DB using an LDAP connection string?", you are not alone! In this blog, we will explore how to establish that connection correctly, breaking down the solution into clear and organized sections.

The Problem

You have a JDBC-URL format that successfully connects to your Oracle 12c database:

[[See Video to Reveal this Text or Code Snippet]]

This JDBC-URL works well when using LDAP for connection. However, when attempting to use the same database connection through Oracle Provider for OLE DB, an error occurs. Simply copying the LDAP string like "ldap://oraldap:389/thisdb,cn=OracleContext,dc=world" into the data source field does not yield the desired results. This raises the essential question: What should be entered as the data source to achieve a successful connection?

The Solution

Fortunately, the solution is straightforward, but it requires specific configuration steps. Here's what you need to do:

1. Obtain Oracle Configuration Files

To facilitate the connection, you will need three crucial Oracle configuration files:

ldap.ora: Configuration file to manage LDAP settings.

sqlnet.ora: File that specifies how Oracle clients connect to the database.

tnsnames.ora: Contains network service names mapped to connect descriptor.

Having these files is essential for your Oracle OLE DB connection to work seamlessly with LDAP.

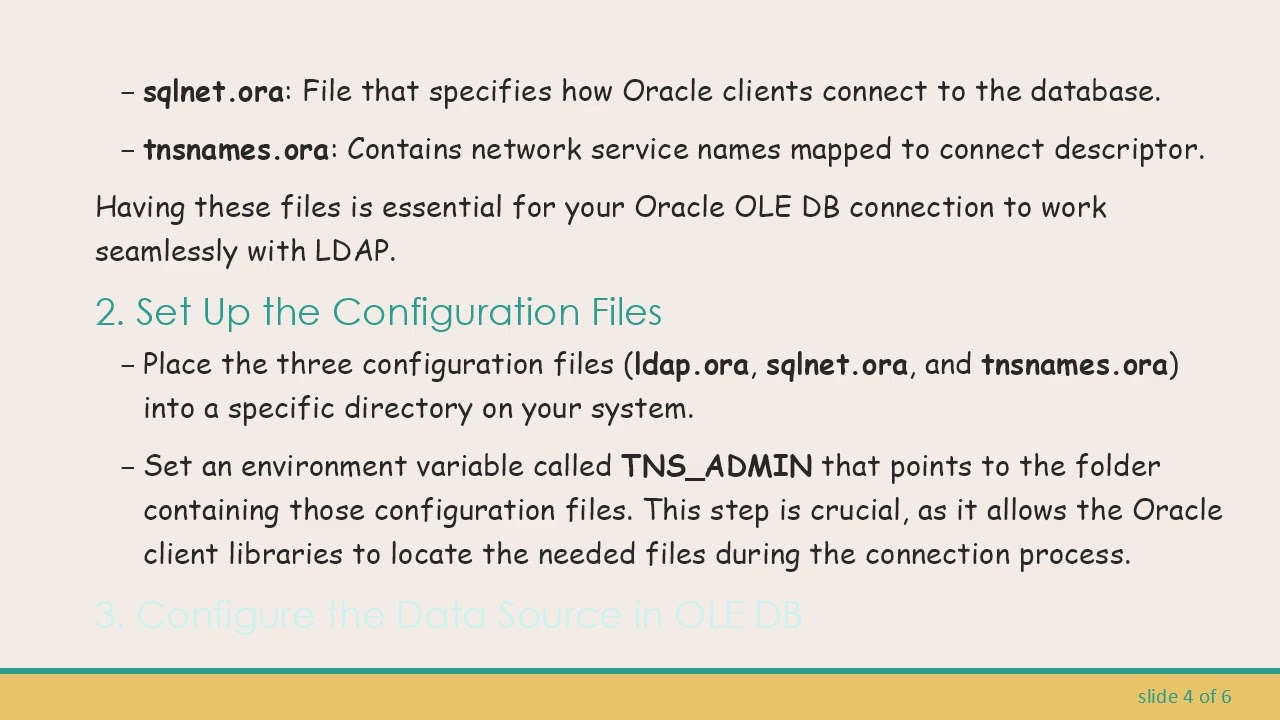

2. Set Up the Configuration Files

Place the three configuration files (ldap.ora, sqlnet.ora, and tnsnames.ora) into a specific directory on your system.

Set an environment variable called TNS_ADMIN that points to the folder containing those configuration files. This step is crucial, as it allows the Oracle client libraries to locate the needed files during the connection process.

3. Configure the Data Source in OLE DB

When you are asked for the data source in your OLE DB connection, instead of using the LDAP string directly, you will enter the database name as specified within the tnsnames.ora file. This format provides a mapped entry that handles the complexity of LDAP behind the scenes.

4. Test the Connection

Once you enter the database name in the data source, proceed to test the connection. If configured correctly, you should see a successful connection to your Oracle 12c database.

Conclusion

Connecting to an Oracle 12c database via Oracle Provider for OLE DB using LDAP is simple once you have the right configuration in place. By obtaining the necessary Oracle configuration files, setting up the environment variable, and correctly entering the database name in the OLE DB data source, you can establish a seamless connection to your database.

If you have any questions or if there are additional steps you’ve taken that made your connection easier, feel free to share in the comments below! Happy coding!
