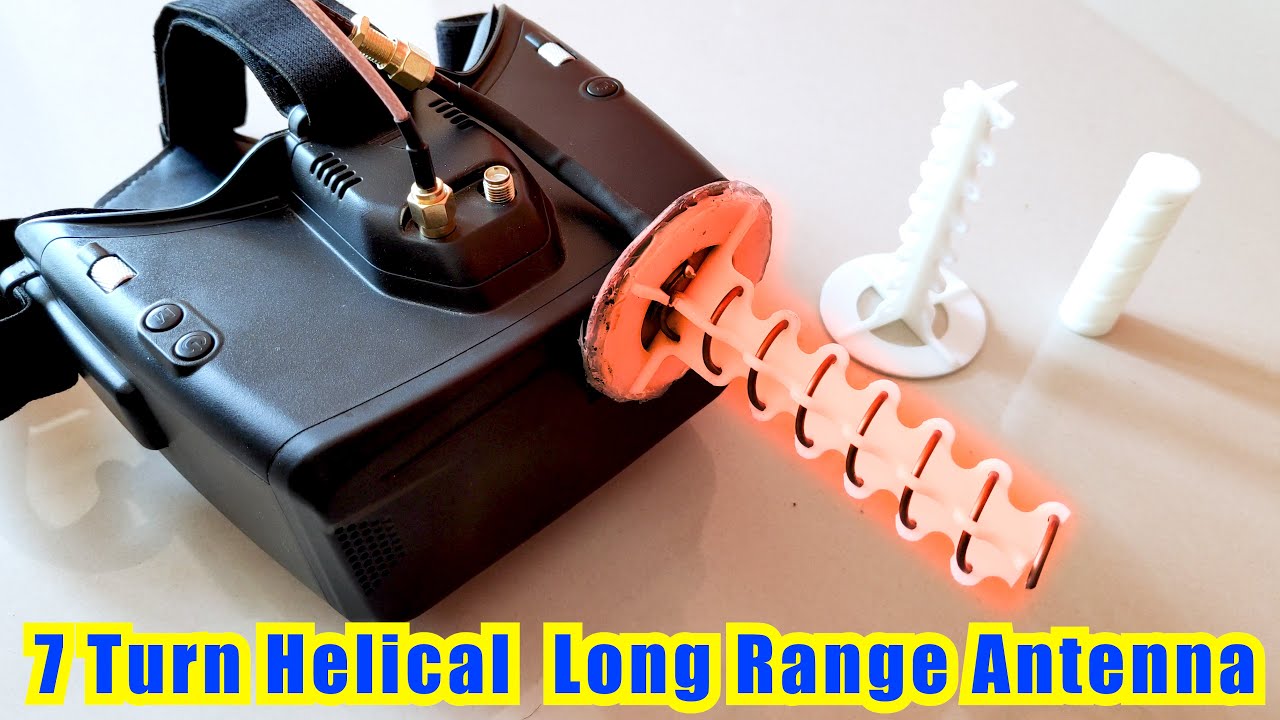

Long Range 5.8ghz 7 Turn High Gain Helical Antenna Build Tutorial
Автор: Rakish Rc
Загружено: 2022-02-14
Просмотров: 8413
#LongRangeFPV #Helical #Antenna
In this video we take a look at how to make a cheap DIY 5.8ghz Long Range 7 Turn Helical Antenna for FPV.
Timestamp
00:00 Intro
01:15 Material Needed
06:00 Installing Copper wire on Jig
11:00 Installing Reflector
11:56 Installing Coaxial Cable
13:53 Wavetrap Installation
15:54 Attaching Reflector to Jig
16:35 Solder Signal wire to Copper Wire
17:49 Hot Glue for Strength
18:14 Cutting to 7 Turns
19:05 Mounting To FPV Goggles
20:08 The End
Material needed :
16 Guage Copper Wire
Helical Antenna Jig and Former
Copper Clad Board / PCB
Steel / Copper / Brass or any metal piece for wavetrap
RG16 or RG402 Coaxial cable
Solder and Soldering Iron
Soldering flux
Glue
Heat shrink
FalconradFPV Helical Build Video - • DIY Helical Antenna For Long Range FPV - C...
IB Crazy Helical Blog - https://www.rcgroups.com/forums/showt...!
Thingiverse 3d print file - https://www.thingiverse.com/thing:367500
Long Former - https://www.thingiverse.com/thing:476...
Subscribe for more videos!
