Lm3886 Board Stability Test | Frequency Response and Square Wave test| DIY Amplifier Project Part 10

#trending #music #stability #bgm #dj #bassboosted #lm3886 #diy #electronics #teaching #frequency #squarewaveinverter #maths #audioequipment #function #audiofilter #amplifier #viralvideo
------------------------------------------------------------------------------------------------------------------------
Amplifier part 4 -    • DIY Active High Pass Filter | Amplifier Pr...
Amplifier Part 5 -    • Best High Pass Filter Circuit |-24dB/Octav...
Amplifier Part 6 -    • Finished Tweeter Section | Power Amp+High ...
Amplifier Part 7 -    • Ultimax Audio Lm3886 board and Tone Contro...
Amplifier Part 8 -    • LM3886 PCB from ROBU.IN | Full Process of ...
Amplifier Part 9 -    • Lm3886 Sound Test and Maximum Power Test |...
-------------------------------------------------------------------------------------------------------------------------

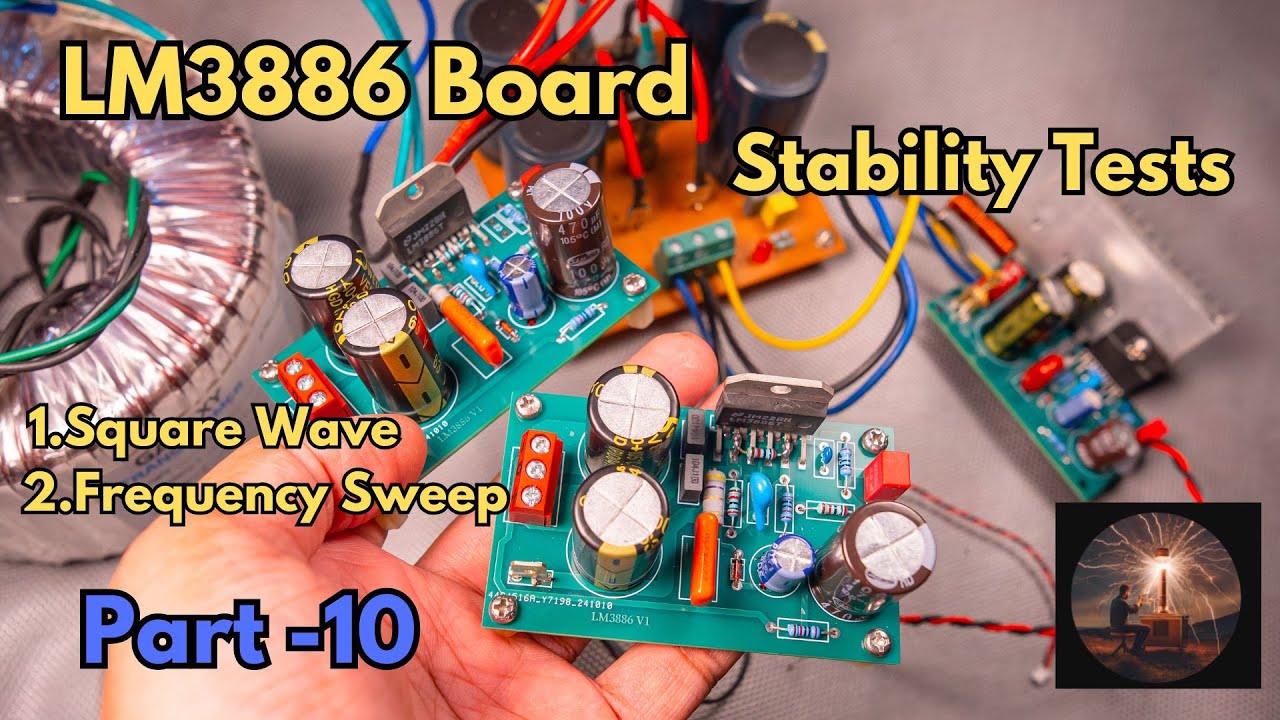

Hello , This Video is about checking the stability of the LM3886 Board. For Stability I will be checking the Square wave response of the amplifier and then will make it force Oscillate to see if it dampens out the oscillation or not . I will be using two capacitors of values 10nF and 0.15uF to create a situation of oscillation. I will also show how the THIELE NETWORK reduces the oscillation as it can reduce the effect of capacitance in the output. Then we will test if the Amplifier is giving flat response or not throughout the Audio Frequency Range. I don't have Frequency Sweep option in my Signal Gen but I will try to keep the Input Amplitude same for all the frequencies that I will test the Amplifier with . So for different Frequencies and same input Amplitude we will note if the output amplitude varies or not .1dB to 2dB change in the output amplitude is expected and accepted in Audiophile level .
The Results will be excellent as the LM3886 chip amp is very well designed.
If you like the explanation in this video please do Like and Subscribe to Roys Desk Channel.
-------------------------------------------------------------------------------------------------------------------------
Gears Im using
---------------

Camera(sony a6400) - https://www.amazon.in/gp/product/B07N...

Lens(viltrox 13mm f1.4) - https://www.digitek.net.in/products/v...

Tripod (Digitek DTR-500BH) - https://www.digitek.net.in/collection...

Mic (Boya ByM1) - https://www.amazon.in/Boya-Omnidirect...
-----------------------------------------------------------------------------------------------------------------------
CHAPTERS

00:00 Intro
00:54 Prerequisites for Square wave test
02:48 Stability Test
04:41 Frequency Response Test
09:33 Conclusion and Confusion
-----------------------------------------------------------------------------------------------------------------------
