The Common Emitter Amplifier [Transistor TS 4]

Video Name:
The Common Emitter Amplifier [Transistor TS 4]

Video Description:

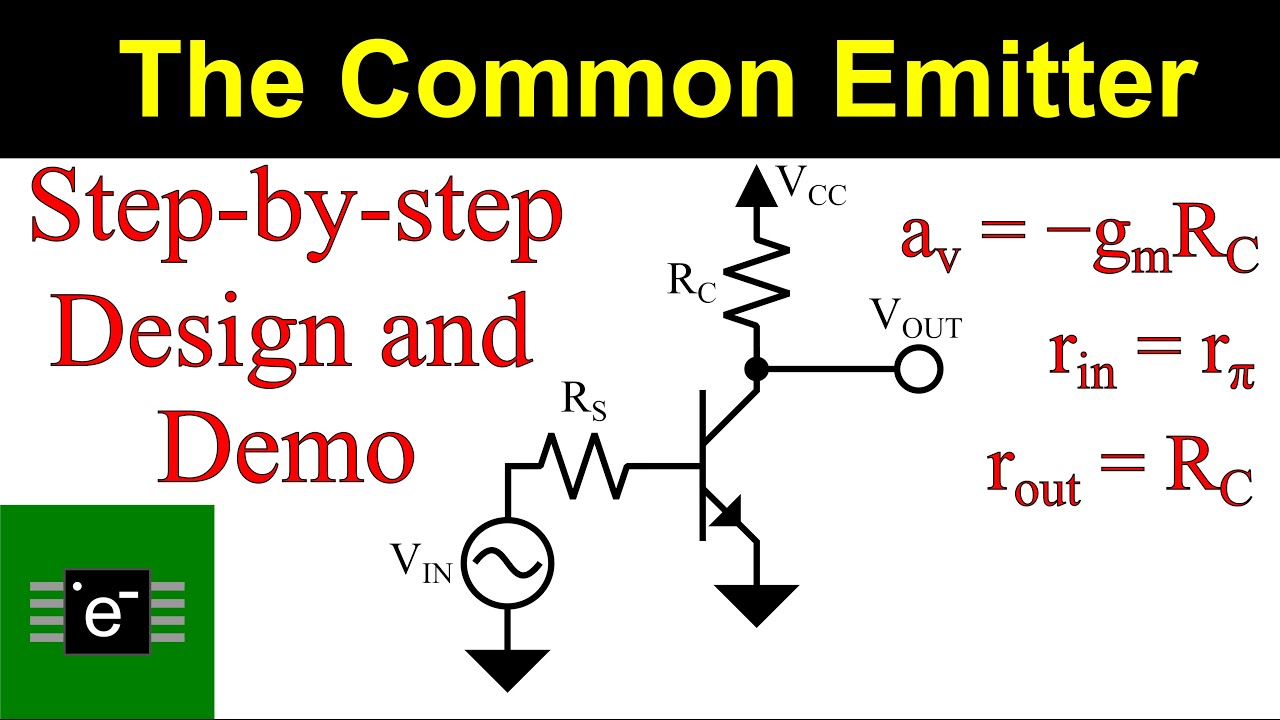

Transistor tutorial series episode 4. In this episode we introduce the common emitter transistor amplifier circuit, go over its biasing and small signal model
then conclude with a step-by-step design and demonstration of the common emitter amplifier in the lab

Concepts discussed:
common emitter transistor amplifier overview
simple biasing circuit for common emitter amplifier
low frequency small signal analysis
step-by-step design of a common emitter amplifier of a desired gain
demonstration of that circuit in the lab
changing the gain of that circuit and demonstrating the differences
explore what happens when the signals become too large

00:00 Intro
00:24 Common Emitter Overview
02:13 Biasing Circuit
05:06 Small Signal Circuit
12:49 Gain of 10 Amplifier Design
20:12 Gain of 10 Amplifier Demonstration
22:38 Increase Gain to 100
24:08 Gain of 100 Amplifier Demonstration
26:28 Outro

This video is part of the transistor tutorial series, a series that explores the fundamentals of transistors including BJT, MOSFETS, and JFETs
