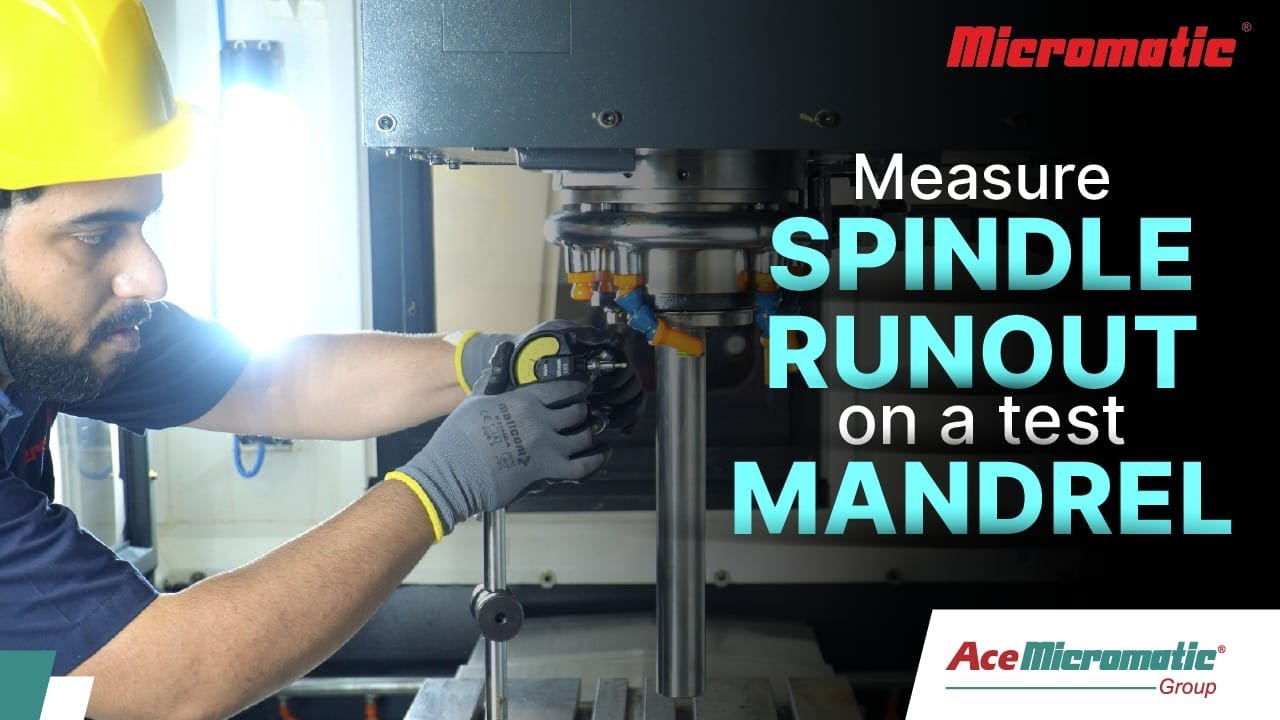

DIY Guide: Measuring Spindle Runout on a Test Mandrel
Автор: ACEMICROMATIC GROUP
Загружено: 2025-07-15
Просмотров: 2222
Want to ensure top-notch machining accuracy? This step-by-step DIY tutorial walks you through how to measure spindle runout using a test mandrel — a key check for identifying misalignment and avoiding tolerance issues in your VMC operations.
All you need: a clean cloth, magnetic dial stand, micron dial, and a properly fitted test mandrel. From cleaning the spindle taper to clamping the mandrel and positioning the dial at 150 mm and 300 mm lengths, we demonstrate how to measure spindle runout using a test mandrel.
Remember: Any runout above 20 microns can compromise your machining accuracy.
By routinely checking runout, you can maintain consistent quality and extend machine life.
Follow AceMicromatic for more hands-on CNC maintenance tutorials and keep your shopfloor performing at its best!
