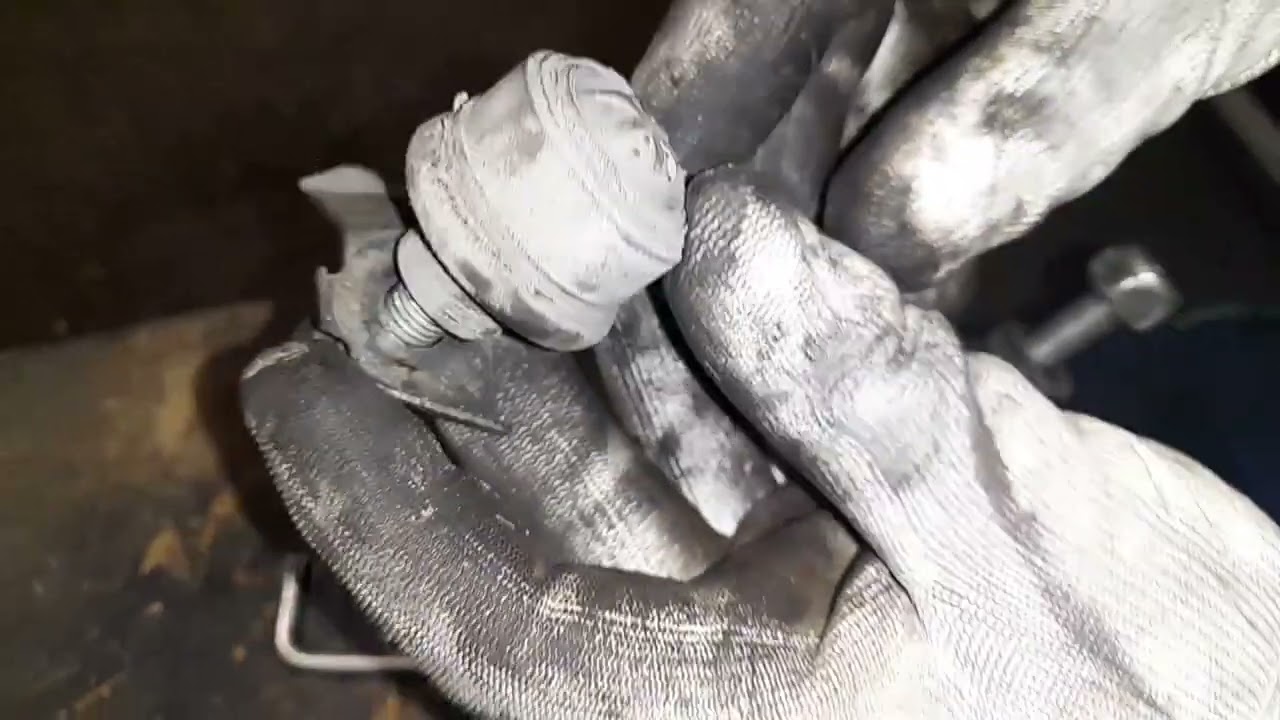

REALLY BAD balljoints detected / Alfa Romeo 147 1.6 TS FL 2006 upper wishbone replacement

SUPER SHORT WHEEL BOLTS REPLACED

3025324 - 4410B68 lower swinging arm(one), lh or rh of front suspension - r r -check wheel alignment separately
Removing ( Refitting ) Position the vehicle on the ramp.Ensure that the ignition key is in the OFF postition, then disconnect the battery negative terminal.

Name Connector
Battery A1B
Proceed with the removal - 4450B10 Front WHEEL (one) - R.R. . Proceed with the removal - 4410A80 damper lower fork - r r . Proceed with the removal - 4410A10 l/h or r/h front suspension spring/damper unit (one) - r+r - check wheel geometry separately if necessary . 1. Undo the nuts (1a) and remove the upper wishbone (1b).
Refitting ( Removing ) Replace the front suspension upper track control arm in it housing and fix it tightening the nuts to the recommended torque.

Fastening Component Ø Value(daNm)
Nut FRONT SUSPENSION TOP LEVER M10 (Bodyshell side) 4.2 ÷ 5.2
Proceed with the refitting - 4410A10 l/h or r/h front suspension spring/damper unit (one) - r+r - check wheel geometry separately if necessary .Proceed with the refitting - 4410A80 damper lower fork - r r .Proceed with the refitting - 4450B10 Front WHEEL (one) - R.R. .Connect the battery terminal (-).Remove the car from the ramp.It is advisable to check the wheel alignment - 4450A10 front wheel geometry - check using optical equipment - includes front wheel tow-in adjustment if necessary .
