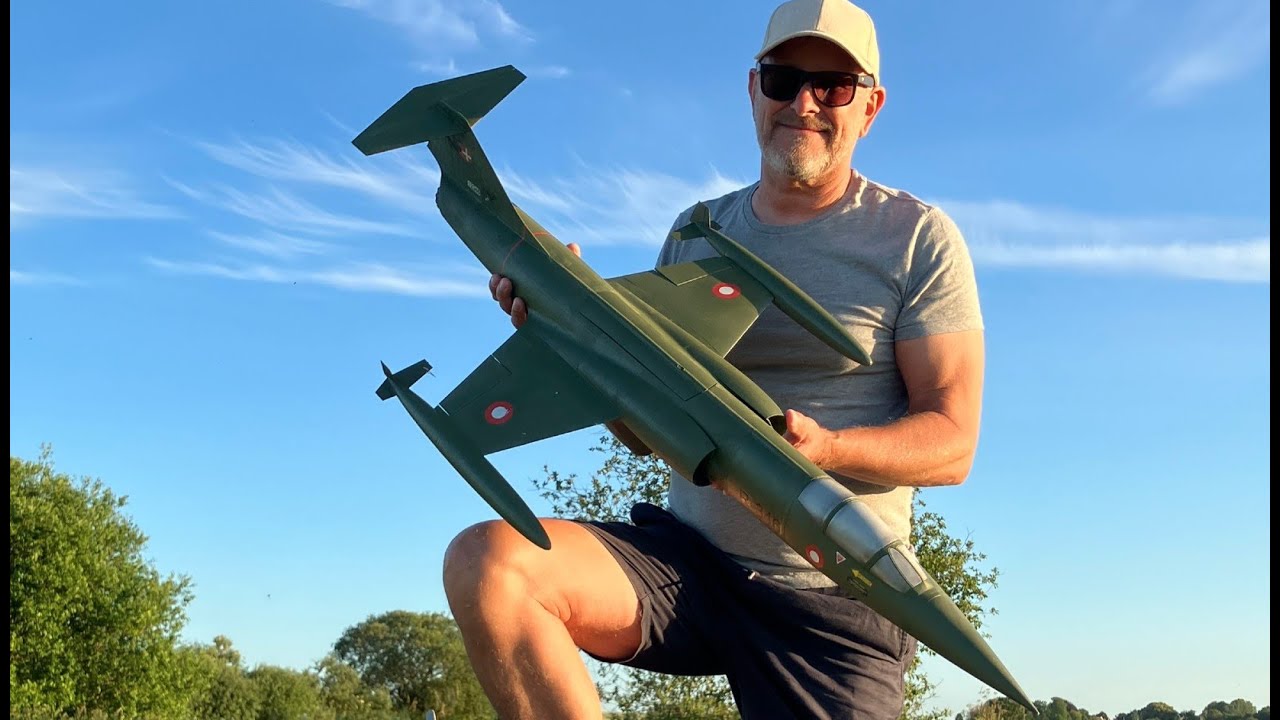

3D printed F-104G Starfighter edf semi scale RC model -Available from 3DLabPrint.com

The 3D printed F-104G Starfighter is designed to look and fly like the full size Starfighter. The
lines and proportions of the model match the real jet with its long, elegant fuselage and short
thin wings.

The optimized edf duct ensures great performance without the use of cheater holes or non scale
sized air intakes. Designed to be powered by a 50mm XFly Galaxy electric ducted fan, the model
has great performance and flight times from 4-6 minutes. The model is designed to be printed
from LW-PLA. Some parts need to be printed from regular PLA.

The model requires no carbon tubes or similar reinforcements. Just print the parts and glue
them together with cyano glue. The Starfighter model is designed to be powered by a 3S or 4S
XFly Galaxy 50mm EDF and a 3S2200mAh or 4S1800mAh quality battery.Other performance
EDFs like FMS will also fit. Three 3.7g servos are needed to control the model.You can upgrade
the servos to more expensive ones like KST X06.

The model features a large hatch for easy access to the battery and radio equipment. The hatch
has a spring loaded locking mechanism for ease of use. A seperate hatch underneath the rear
fuselage gives access to the EDF unit.

Control throw gauges are included with the model for easy adjustment of the correct amount of
movement of both ailerons and elevator. Special jigs are included to help building a straight and
true model. A CG craddle is included to make it easy to balance the model correctly at the Center
of Gravity.

The F-104G Starfighter is designed with a catapult hook for bungee assisted launching. It is highly
recommended to use a catapult or bungee launcher with 6-7 kg pulling force for a safe launch of
the model.

The F-104G Starfighter model is available for download from https://3dlabprint.com/shop/f-104g-st...
