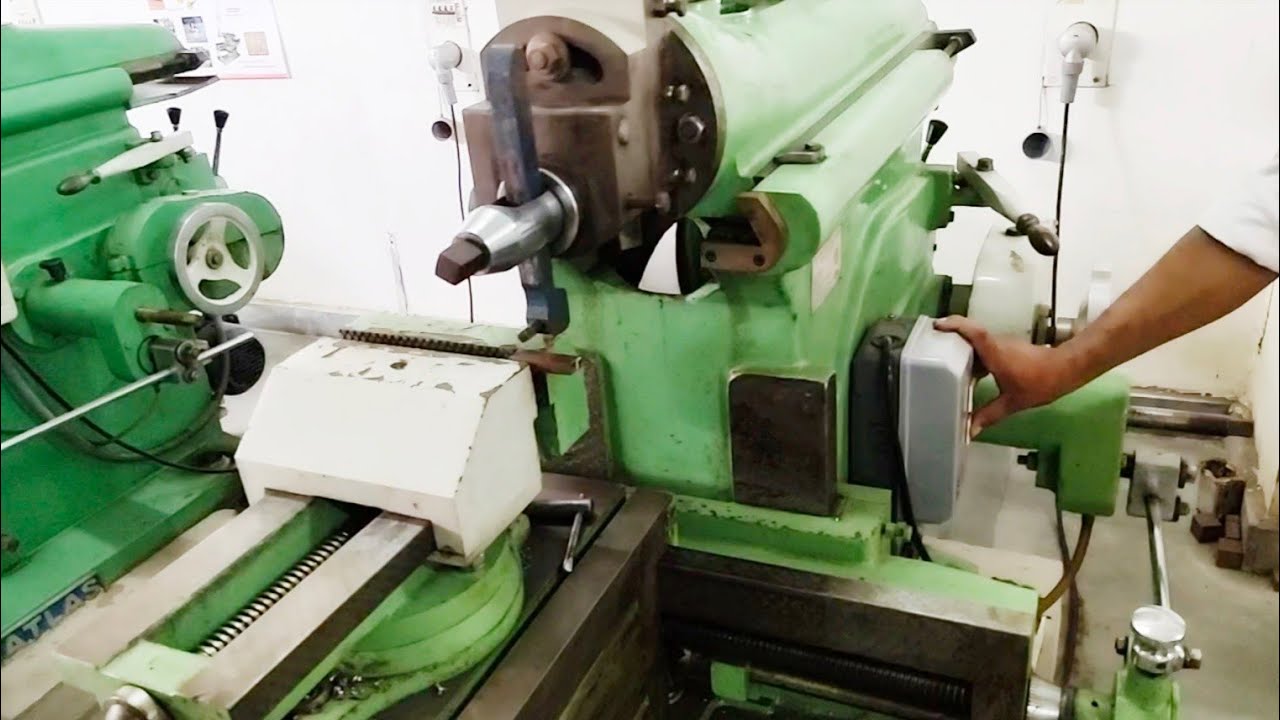

SHAPER MACHINE ( शेपर मशीन)WORKING IN हिन्दी
Автор: Class Room DaDa
Загружено: 2018-11-23
Просмотров: 10094
Details of shaper machine, parts and working principal types of machine and used.
The shaper machine is a reciprocating type of machine basically used for producing the horizontal, vertical or flat surfaces. The shaper holds the single point cutting tool in ram and work piece is fixed in the table.A quick return mechanism is an apparatus to produce a reciprocating motion in which the time taken for travel in return stroke is less than in the forward stroke. It is driven by a circular motion source (typically a motor of some sort) and uses a system of links with three turning pairs and a sliding pair.
Types of shaper machines.
Based on the type of driving mechanism. Crank type shaper. Geared type shaper. ...
Based on ram travel. Horizontal shaper. Vertical shaper.
Based on the table design. Standard shaper. Universal shaper.
Based on cutting stroke. Push cut type. Draw cut type.
