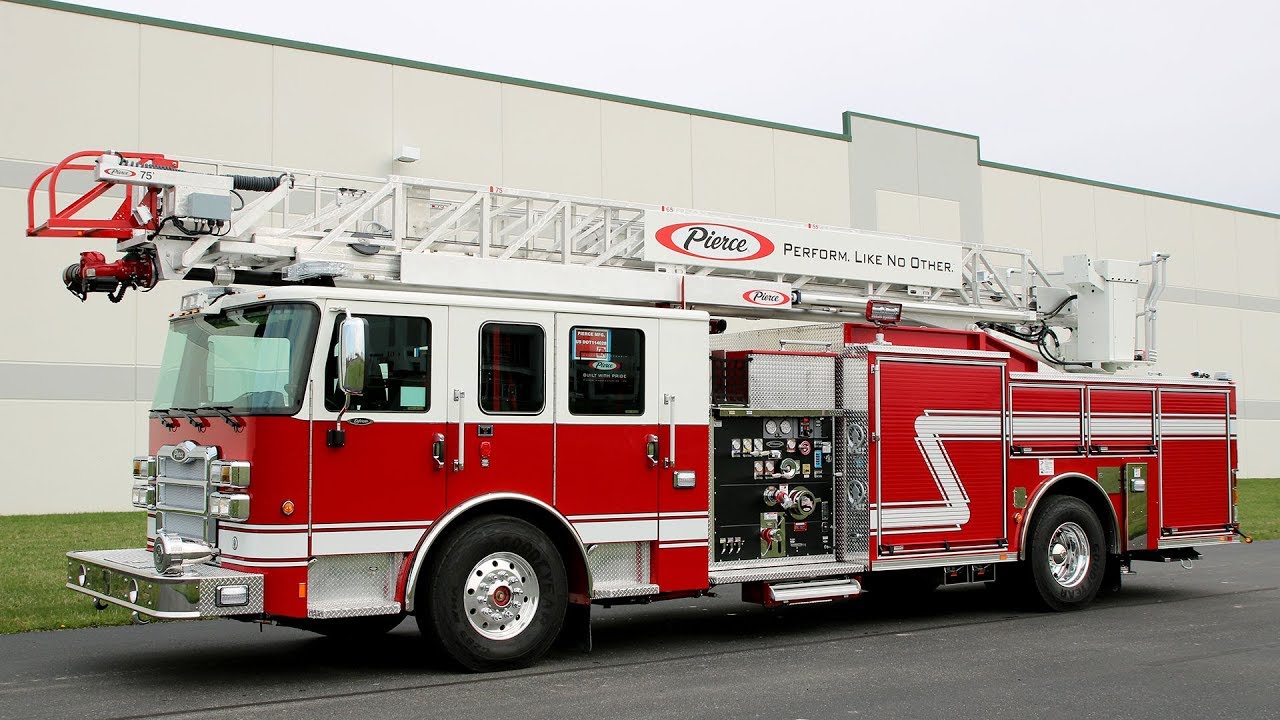

Enforcer™ 75’ Heavy-Duty Aluminum Aerial Ladder – Haskell, AR

Haskell Fire Department’s #Enforcer 75’ Aluminum #AerialLadder will be delivered in less than 6 months with Pierce’s stock truck program. The short h-style outriggers allow for additional versatility in tight roadways. #HaskellAR is a rural area with overhead obstructions so dual Golights were added on top of the cab. The rear of the body allows easy access to pike poles and ladders on each side. #FDIC2021

CHASSIS
Chassis: 70” Enforcer cab
Seating capacity: 6
Overall height: 11’ 8”
Overall length: 36’ 11.5”
GVW Rating: 53,000 lb
Front axle: #TAK4 Independent Front Suspension, 19,500 lb
Rear axle: Meritor FS30-185, 33,500 lb
Engine: Cummins L9, 450 hp, 1250 lb-ft

BODY
Material: Aluminum
Shelving: Adjustable up to 500 lb
Doors: Rollup
Pump: Waterous, 1500 gpm
Tank: 500-gallon
Pump Panel: Pierce #ControlZone, 45”
Foam: Provisions for future system
Foam Cell: 20-gallon

AERIAL DEVICE:
Device: 75’ Heavy-Duty Aluminum Ladder
Reach: 75’ vertical, 67’ 9” horizontal
Tip Load: 750 lb dry, 500 lb wet
Equipment: 100 lb allowance
Flow rate: 1500 gpm
Stabilizers: 1 set, 16’ spread

Job Number: 35778
Dealership: Emergency Vehicle Specialists
