Relative Motion Analysis: Vector Analysis

Check out https://www.engineer4free.com/dynamics for more free engineering dynamics tutorials. The course covers linear motion, projectile motion, circular motion, kinetics, work & energy, impulse & momentum, and rigid body rotation.

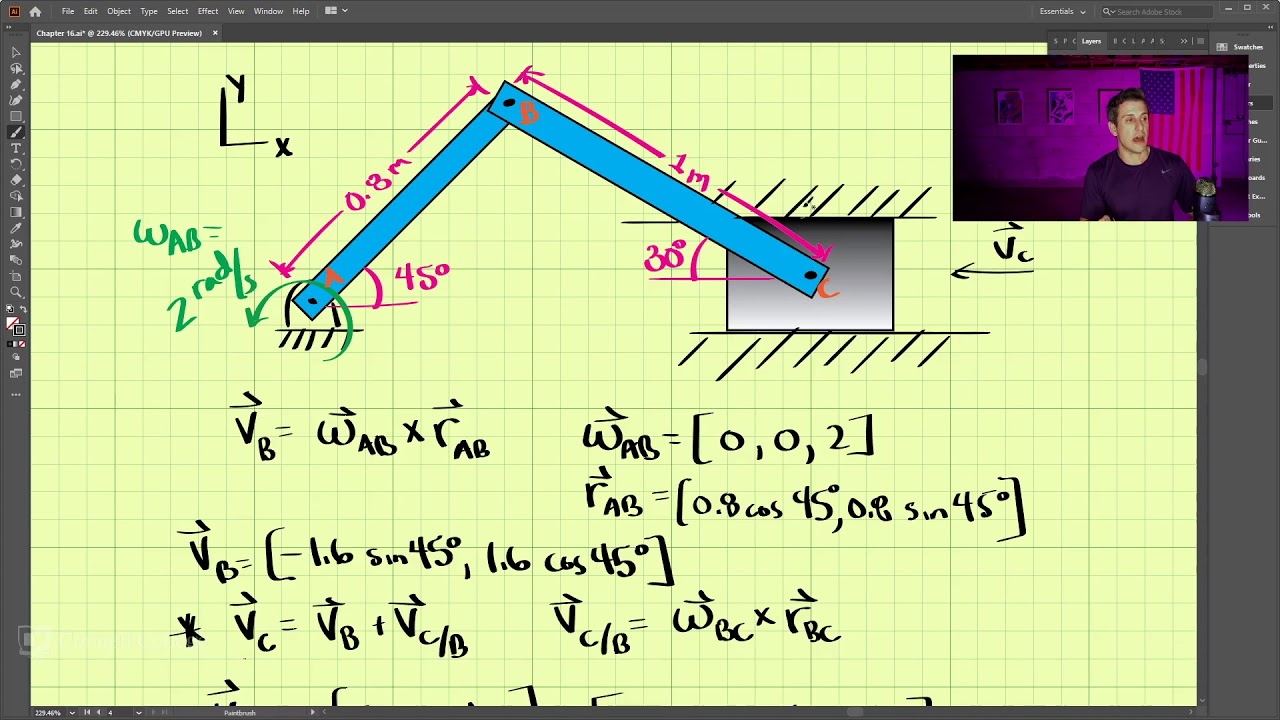

This tutorial introduces the relative motion (vector) analysis method that can be used to solve general motion problems, and then also goes over a full example. In the example, we have a single slider crank shaft with a constant angular velocity in the crank, and determine the piston speed when the crank is 30 degrees up/clockwise from the horizontal.

If you found this video helpful, please consider supporting my work on Patreon:   / engineer4free

I also created a whole set of fully solved dynamics problems with step-by-step hand calculations: https://www.engineer4free.com/dynamic...
