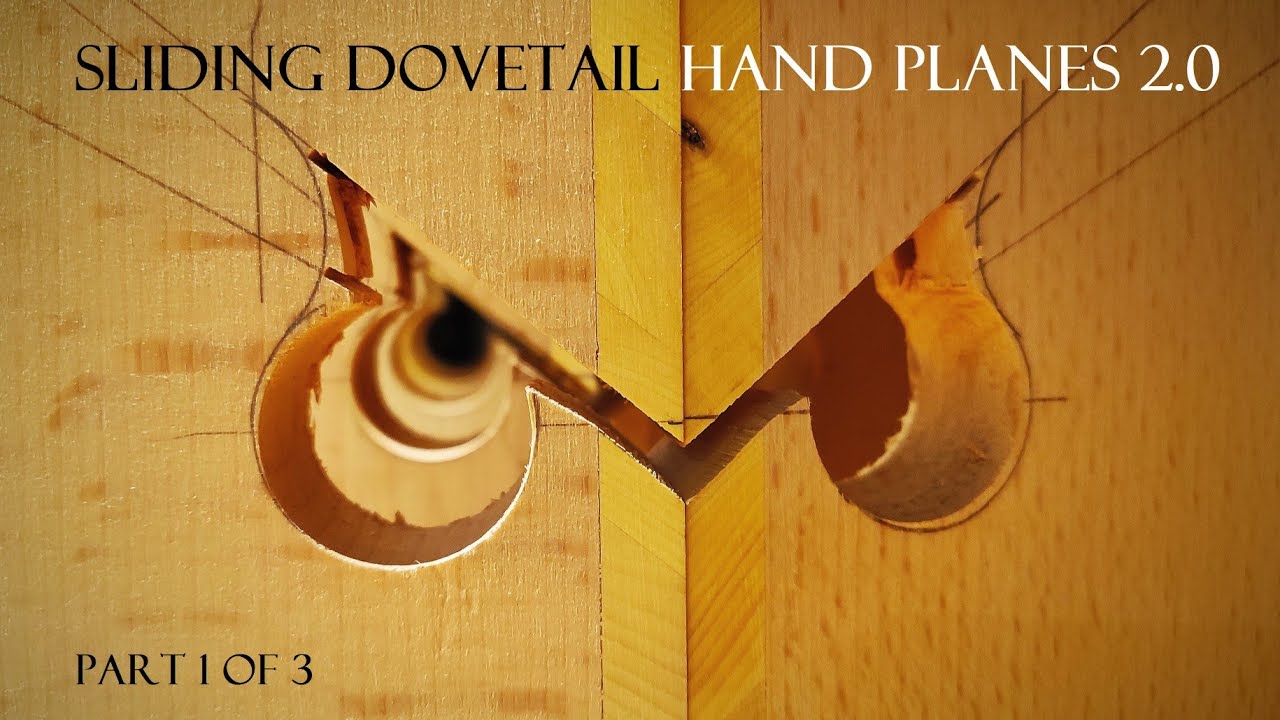

047 Sliding dovetail hand plane - version 2.0 Part 1 of 3

Hello! Some of you noticed on my instagram that i'm preparing few pairs of sliding dovetail hand planes. It would be the same kind of planes as i made in my first video of my channel, but this time they will be normal size. The planes will work in pairs - left plane and right plane for booth directions of cutting.
If you dont know how i made the boxing on this plane blanks just watch my previous video.
As usually i decided to make video of bulding process, but as one part it would be to long so i decided to make it in 3 parts.
Every step is decsribed on the timeline so you can easly read what i'm doing in any moment of the video.

I hope you will like it!
Regards!


BTW. I don't take orders and usually don't sell my planes (exception - i'm gonna sell one pair of this sliding dovetail planes on my instagram profile when they will be done). The most sure way to get some of them is take a part in giveaways for my supporters.
For support click here:
   / @stavrosgakos


or use my PayPal account: esortodox@gmail(dot)com


Big thanks for my supporters!
ANDREW DAWSON
JOSHUA LUCAS
ROSS TOMAZIN
RENE POLAK
LUBOS SULC
RAMINGR
SCOTT MARTIN
BRIAN NEWTON
ŁUKASZ JASIŃSKI
WALTER GRUBE
PMEWUK
MIKE ETHERINGTON
MELINDA JOHNSON
SOTIRIS ZACHAROPOULOS
ARTUR PIETREK
WILLIAM C ALLEN
ANDREJS STROKINS
PATRYK MIKOŁAJCZAK
MACIEK LASZCZ
ALLEN MOCK MD
ANDIEJOY
RICHARD JOHNSON
PAWEŁ CUDNOCH

....................................................................................................
For more check my instagram profile:
  / stavros_gakos
​

Remember to subscribe my buddy, Łukasz Giergasz
(with engilsh subtitles)


Click here:
   • Finał renowacji. Moja nowa strugnica dosta...




Drawings tools: (0:00​)
Drawing: (0:13​)
Marking the bed location: (0:18​)
Marking the breast location: (0:21​)
Marking the bed 50 deg: (0:24​)
The iron (i'll show it closer in the 3 part): (0:34​)
Checking the breast location with the iron: (0:38​)
Marking the breast (the wear) angle: (0:46​)
It is too narrow to put the iron at this moment, it will be open later: (0:48​)
Marking the location of the abutment: (0:50​)
Marking the abutment 60 deg: (0:54​)
Marking location the tail of conical escapement: (1:12)
Marking location of the escapement center : (1:17​)
Marking left side of the escapement: (1:32)
Marking the place for the wedge: (1:53)
Left hand planes done: (2:01)
Right hand planes to go: (2:06)
Repeating the same process: (2:15)
Cutting the bed and the breast on the band saw: (2:51)
Remowing the waste: (4:04)
Drawing the escapement on the second plane of every each plane: (4:35)
Drillng the hole for escapement: (5:27)
Marking the place for the wedge: (6:22)
Removing material to make flat surface during the drilling: (7:07)
Drilling: (9:46)
Ready for the next step: (11:24)
Thank you: (11:27)
