How to Identify Stepper Motor Wires (Find A+/A- & B+/B-)
Автор: Just Botond
Загружено: 2025-09-03
Просмотров: 2576

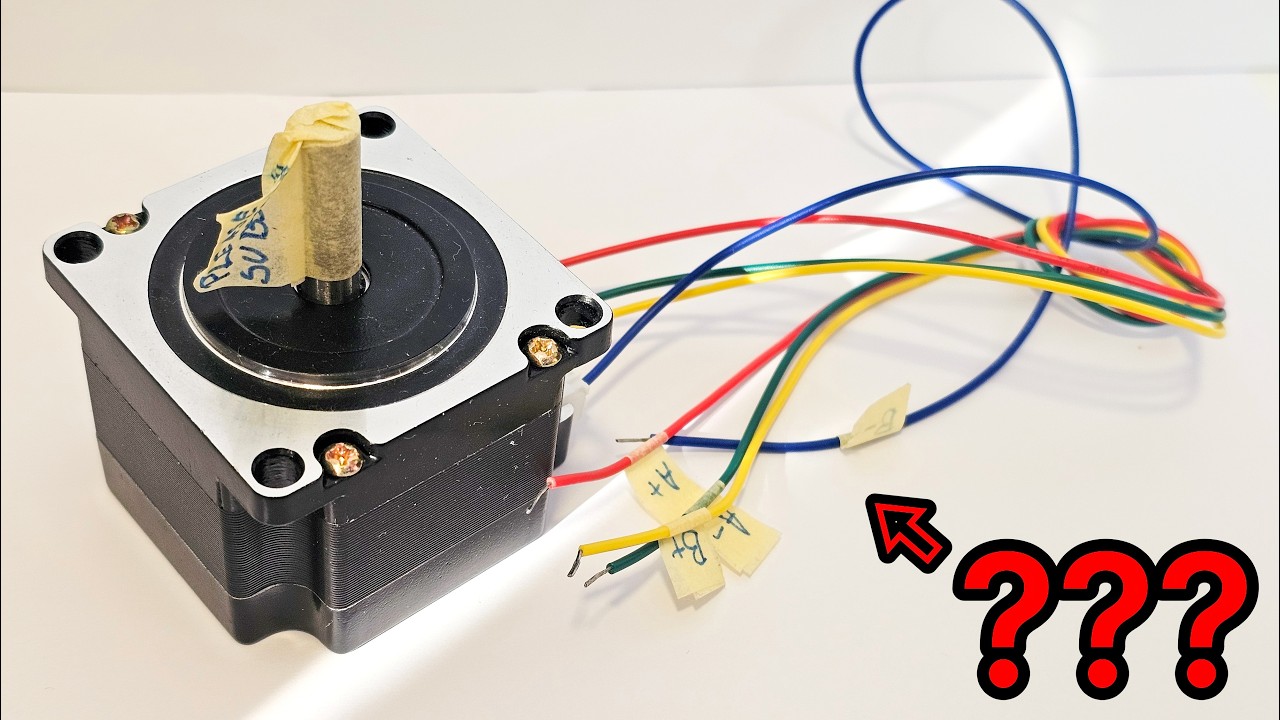

How to identify stepper motor wires and coil pairs (A+/A-, B+/B-) without confusion! In this video, I show 3 simple methods to test and connect stepper motors like NEMA 17, NEMA 23 with Arduino or CNC drivers.
✅ Method 1 – No tools: Find pairs by feel/resistance
✅ Method 2 – Multimeter continuity test
✅ Method 3 – Datasheet check & Arduino driver test
You’ll also see what happens if you swap pairs or polarity so you can connect stepper motors correctly to a driver. Perfect for 3D printers, CNC machines, robotics, and DIY electronics.
🔗 Watch my other video on wiring & driving stepper motors with the TB6600 driver here → • TB6600 Stepper Motor Driver with NEMA 23 –...
If this video helps, don’t forget to 👍 like, 🔔 subscribe, and leave a comment below!
0:00 – Intro: Stepper motor wiring basics
0:42 – Method 1: Find pairs without tools
1:37 – Method 2: Multimeter continuity test
2:15 – Method 3: Datasheet & Arduino test
2:45 – What happens if you swap wires/polarity
4:10 – Wrap up & next video recommendation
