Wiring Made Simple | Segment 6 – Farmall Model B Tractor

This video makes making a wiring harness for a Farmall B tractor, look simple (and would be similar for many other models.) Because it is simple.
I walk you through step-by-step how to make a professional looking wiring harness with the wire loom and end terminations.

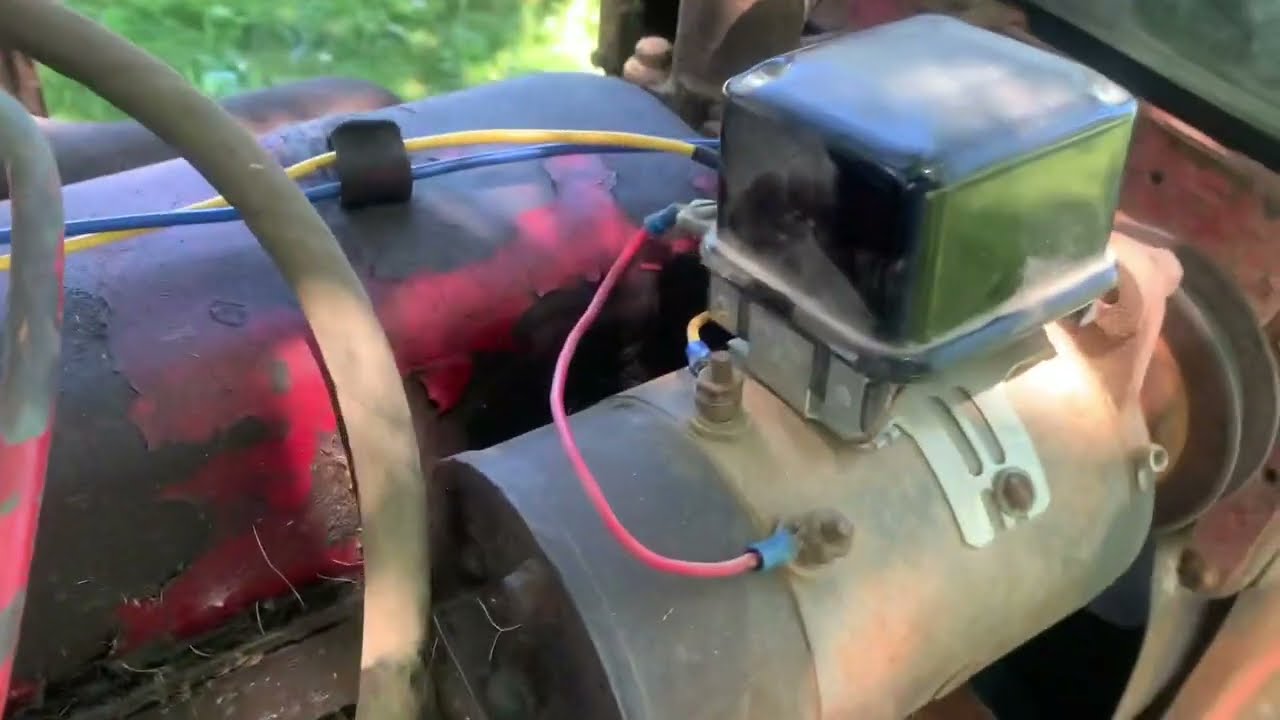

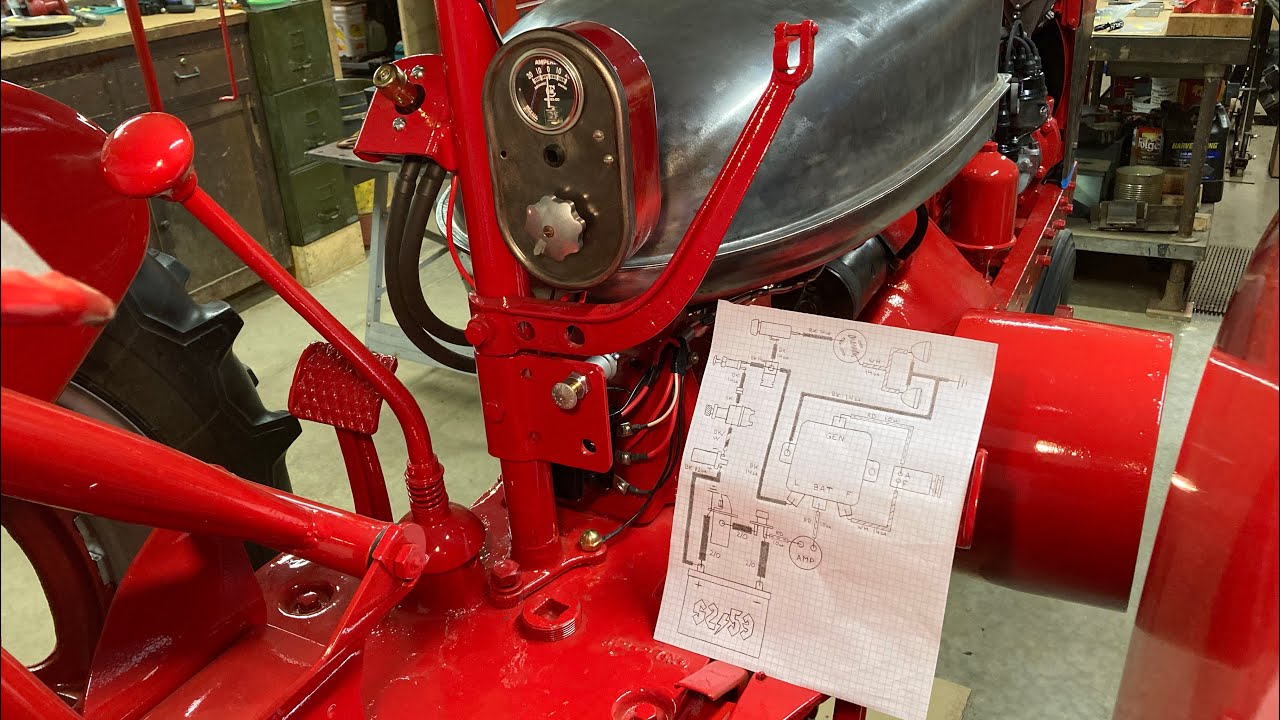

Part of the reason I made this video is that I could not find a wiring diagram for a Farmall B, with a magneto, and a 4-terminal 6-volt positive ground Voltage Regulator. After some study and conferring with what I believe to be some knowledgeable sources, I made this wiring diagram, and went about fabricating a new harness.

I will post the diagram and if for some reason it does not come through just email me at Info@resto-rat.com and I will send a PDF to you.

The wire loom is available from Atkins and Pearce at: https://www.atkinsandpearce.com/produ...

The wire and terminals are readily available in colors and lengths at McMaster-Carr at: https://www.mcmaster.com/products/wir...

Here are time stamps for the chapters:
00:00 – Intro
0:00:13 – Summary Overview, Wiring Made Simple
0:01:56 – Getting Started – Here is the Original Wiring Harness
0:03:44 – Getting Started – Here is the Cluster
0:05:56 – Supplies Required
0:08:41 – Making the Regulator Runs
0:19:28 – Making the Magneto Run
0:21:02 – Making the Rear Light Run
0:23:31 – Making the Forward Light Run
0:28:15 – Making the Main Wiring Loom
0:39:46 – Completing up the Main Harness
0:42:04 – Sourcing the Wire Loom
0:43:53 – Process Summary
0:45:54 – Outro
