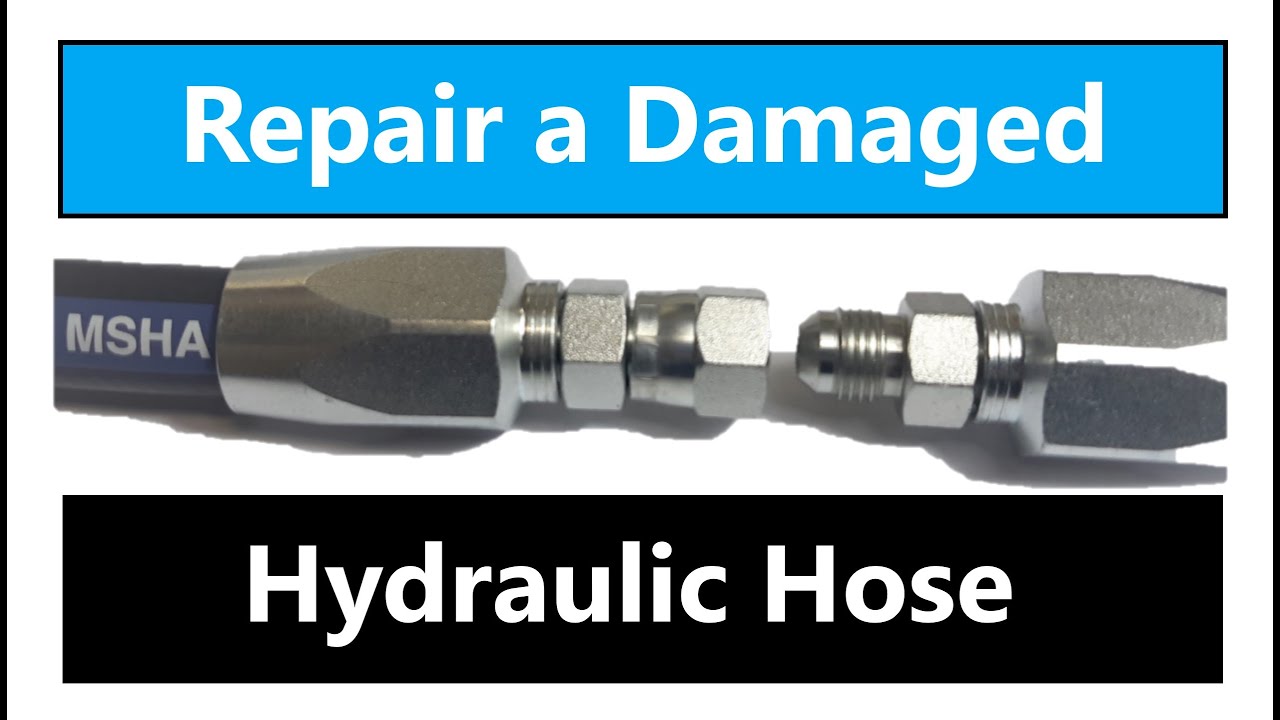

D.I.Y Hydraulic Hose Repair and Assembly Using Reusable Field Fit Fittings (4000 psi / 270 bar)

In this video, Minos shows us step by step, how to measure and make a new high-pressure Hydraulic Hose assembly Using SAE 100R2 AT Hose and Field Fit Reusable fittings.
Buy now online from
https://www.hydraulic.online/search?k...

Buy hydraulic parts Online Now 30 to 50% off with No Waiting or time-sucking requests for quotes.
new store https://engmattec.com.au/

If you are in the U.S. get your reusable hose fittings from our website https://valvehalla.com/

For JIC Reusables
https://valvehalla.com/collections/fe...

For ORFS Reusables
https://valvehalla.com/collections/fe...

Field fit reusable fittings for hydraulic hose come in few types
JIC, BSP, ORFS, and SAE and Code 61 Flange.

Effective Hose repairs can also be carried out by following the same principles and techniques used in the video.
The finished assembly is then pressure tested to 4000 PSI.

AUSTRALIA ? copy and click the links below for products seen in this video and have it posted to your door
https://www.hydraulic.online/
If you are looking for a range of field fit reusables click here.
https://bit.ly/3b6Mkyd
We now use and recommend a Stauff (Germany) 0 to 700 bar digital pressure gauge
https://www.hydraulic.online/STAUFF-D...

see the full review here
   • 8 REASONS WHY 1 DIGITAL PRESSURE GAUGE IS ...

If you are looking for hose click or copy and paste link into your browser
https://www.hydraulic.online/ENGMATTE...

Our web store has many of the most common Hose Sizes and Hose Fitting thread types as well as pumps, valves, cylinders, pressure, flow testing, and measuring equipment at


Time Stamps:
0:00 – Assembly of first reusable fitting
3:30 – Measuring the hose for accurate length
4:46 – Cutting the hose with an angle grinder
6:29 – Assembly of second fitting
10:14 – Pressure testing the hose assembly
12:35 – Where to order the hose and fittings


Tools You will need:
*Length of Hose SAE 100R2AT-08 (hose length to be determined by sample hose to be replaced or distance between the two points the hose needs to be connected to, please allow extra hose for any movement if connecting to cylinders that actuate or move arms or linkages)
*Two reusable 2 wire bodies and two reusable Hose tails (3/4 inch JIC Female used in this video) (one set for each end)
*Two wrenches (spanners) to suit size of hex on body and nut on tail (wrenches should be correctly sized to fit snugly over the steel Body and Nut on the Hose Tail. Spanners are preferable over the use of an adjustable wrench or shifting spanner because they are safer as there is less chance of slips that can cause bruised or grazed knuckles)
*4 or 5 inch Angle grinder (with 1 mm steel cutting disc)
*Bench vice (with Aluminium soft jaws)
*Measuring tape (metric used in this example)
*White marking chalk or crayon or ink pen
*Safety glasses/goggles
*Air compressor with air hose and air blow gun
*Clean grease
*Oil resistant nitrile gloves (cut resistant gloves used in this example)
*Replacement or "Top-up" Hydraulic oil.
