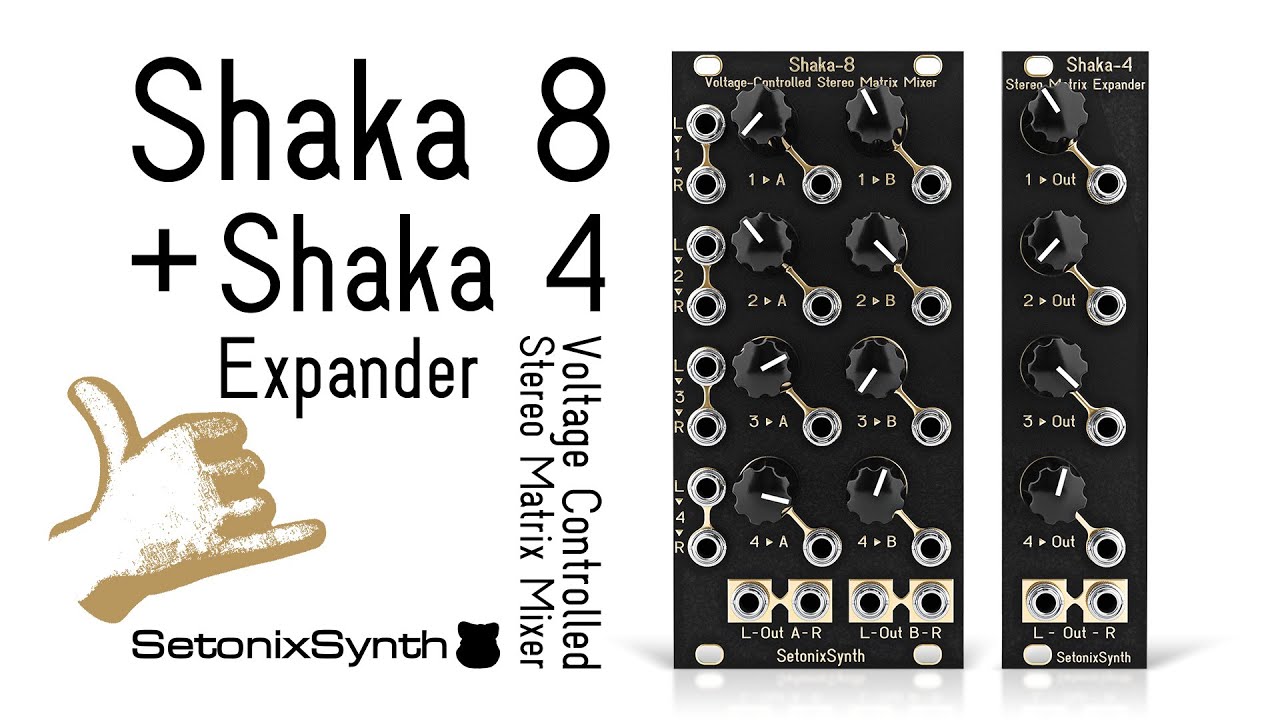

Introducing: SetonixSynth Shaka-8 and Shaka-4 VC Stereo Matrix Mixer for Eurorack

We are proud to announce the new Shaka-8 and Shaka-4! This demo contains a feature rundown and brief performance demo of these powerful modules.

The Shaka-8 is a Voltage-Controlled Stereo Matrix Mixer with an all-analog signal path. While it is similar in function to other Stereo Matrix Mixers, the Shaka-8 uses high quality audio VCAs to enable voltage control over each matrix patch point, i.e. the send level of each L/R pair of inputs to each L/R pair of outputs.

In addition to the 4 input and 2 output channels on the Shaka-8, the Matrix may be expanded to a 4x3, 4x4 or more matrix mixer by chaining Shaka-4 Stereo Matrix Expanders to the main unit via a 12-pin connector on the back of the Shaka-8. The Shaka-4 cannot be used without a main Shaka-4 unit.

The Shaka-8 and Shaka-4 operate in much the same way as a typical stereo audio matrix mixer, with the send level of each input to each output controlled by the corresponding knob, and the resulting “mix” being a sum of the knob settings in each column, added to the CV input corresponding to each knob.

For Eurorack users hungry for interesting new ways to route stereo or mono filters, oscillators, and effects, the Shaka-8 and Shaka-4 are sure to provide an affordable, flexible, and highly useful patching ecosystem to explore.

Available summer 2024 from SetonixSynth!
