BUiLDiNG the Tamiya DT-03 Neo Fighter Buggy Assembly Kit

Completing the Tamiya Neo Fighter Buggy Assembly Kit, the first in line of a new generation of DT-03-chassis based entry-level buggies from Tamiya.

Thank you for watching!

Subscribe here for future RC content: https://www.youtube.com/c/NordicRCVis...

My preferred online shop for Tamiya and other RC products: https://tamico.de/?aplink=mXT6WHA2gqu...

Check out my channel for many more previous RC videos!

New videos every week!

Please comment and like ... if you like! Subscribe and "Ring the bell" to stay notified! Don't miss out! All support is greatly appreciated!

Happy Hobby Days and Keep 'em Running!

See you soon!
----------------------

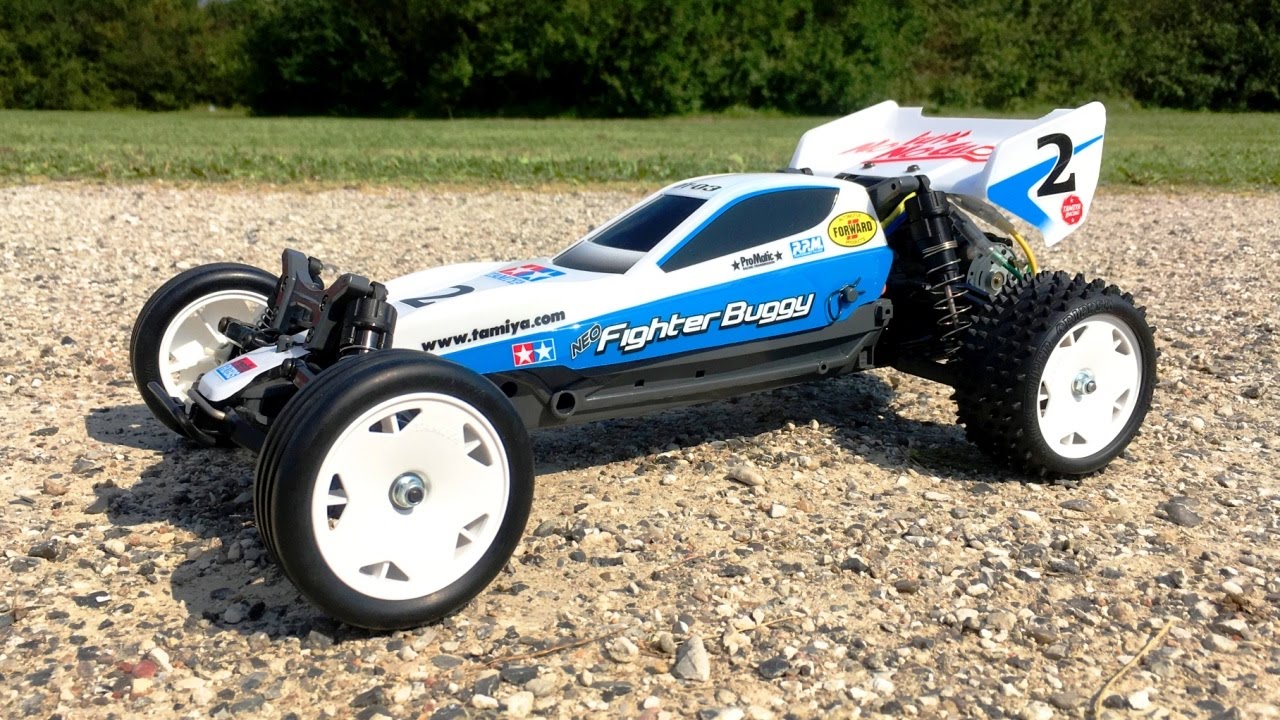

Watch Part 3 (Final Result and First Running Video) here:    • BUiLDiNG the Tamiya DT-03 Neo Fighter Bugg...

Watch Part 1 (Making the Body) here:    • BUiLDiNG the Tamiya DT-03 Neo Fighter Bugg...

This is Tamiya's first DT-03, originally released in 2014, and at the same time this is my first personal experience with a DT-03 and probably my cheapest new Tamiya model.

The finished build is almost bone-stock, with the addition of the essential changes: One 19T Steel Pinion Gear (compared to the stock 17T Aluminium) and 14 Metal Ball Bearings (compared to the stock plastic bushings).

For those familiar with the Tamiya DT-02 chassis series, you will notice that the DT-03 chassis itself makes out the only important change. The remaining parts are pretty much inherited from the DT-02 series. Compared to the DT-02 the whole idea behind the DT-03 must simply be to distribute all weight in the center as well as extend the wheel base. The DT-02 is wide and short and the DT-03 is narrow and long. You can find videos with the DT-02 in my channel to compare.

The kit also include Frog Racing Decals as an option. The slender DT-03 2WD Monocoque Frame and the Neo Fighter Body could indeed take one's mind back to the original ORV 2WD Space Frame and the slender Tamiya Frog Body. An affordable and modern "Neo Frog" or "Frog 2" comes into my mind when looking at the Neo Fighter.

----------------------
RC MODEL (STOCK-) SPECIFICATIONS:
Brand: Tamiya
Model: Neo Fighter Buggy #58587
Originally released in: 2014
Type: Assembly Kit, Buggy
2WD (Rear Wheel Drive)
Chassis: DT-03 (ABS Plastic Monocoque Frame)
Body/Wing: Polycarbonate/Lexan
Scale: 1/10
Length: 400 mm
Width: 248 mm
Height: 132 mm
Wheel Base: 287 mm
Gears: Sealed Gear Box with Differential
Gear ratio: 9.28:1
Suspension: Independent Double Wishbone (Front & Rear)
Shocks/dampers: CVA Oil Filled Dampers
Bearings: Plastic bushings
Electric motor: Tamiya Torque Tuned Brushed Type 540
ESC: Tamiya TBLE-02S (brushless + brushed)

-----------------------------------------------
