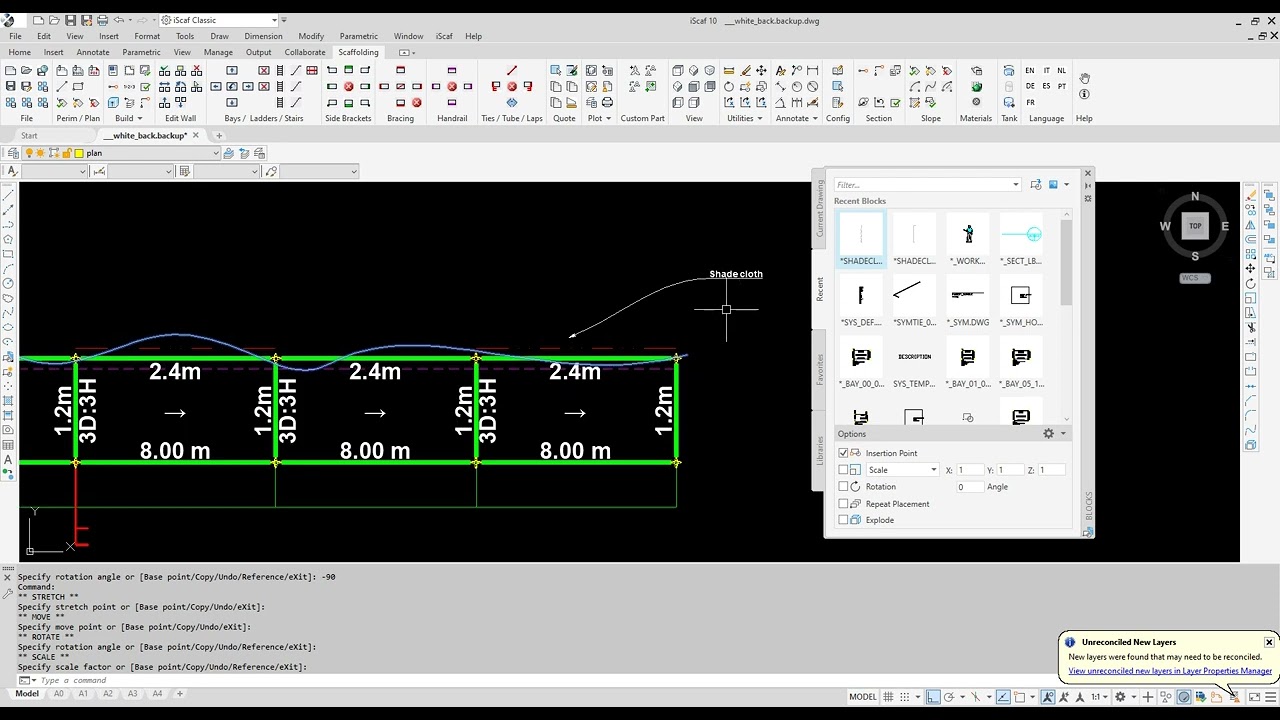

iScaf® 10 Tutorial -- Scaffold Shade Cloth / Containment Mesh / Tutorial 2023
Автор: Scaffolding Software
Загружено: 2023-03-05
Просмотров: 296
draft video only
00:00 Intro
00:20 Selecting the proper plan layer for the drawing
00:37 Drawing the line for shade cloths
01:02 annotating the shade cloths
02:08 Inserting shade cloths using Block
05:13 Inserting shade cloths onto the Section drawing
08:28 Inserting a title using Annotation
iScaf® 10 Tutorial -- Scaffold Shade Cloth / Containment Mesh / Tutorial 2023
For 3d shade cloth
Draw a line.
Change to desired color
change the thickness to the height of the shade cloth
-oo-
another method for
How to show Shade cloth in 3D
Create a new layer
Choose a color
Choose transparency to around 50%
Draw a line
Then use the thickness command similar to the other iScaf tutorials that use the thickness command.
