Axelson 28" x 132" Lathe

MACHINERY CONSULTANTS INC
1390 W. 200 S. Salt Lake City, UT 84104
Ph: 801-531-9500 Fx: 801-531-9555
Em: nicole@machineryconsultants.com
www.machineryconsultants.com

We are pleased to offer, subject to prior sale and our conditions of sale, the following for your consideration:

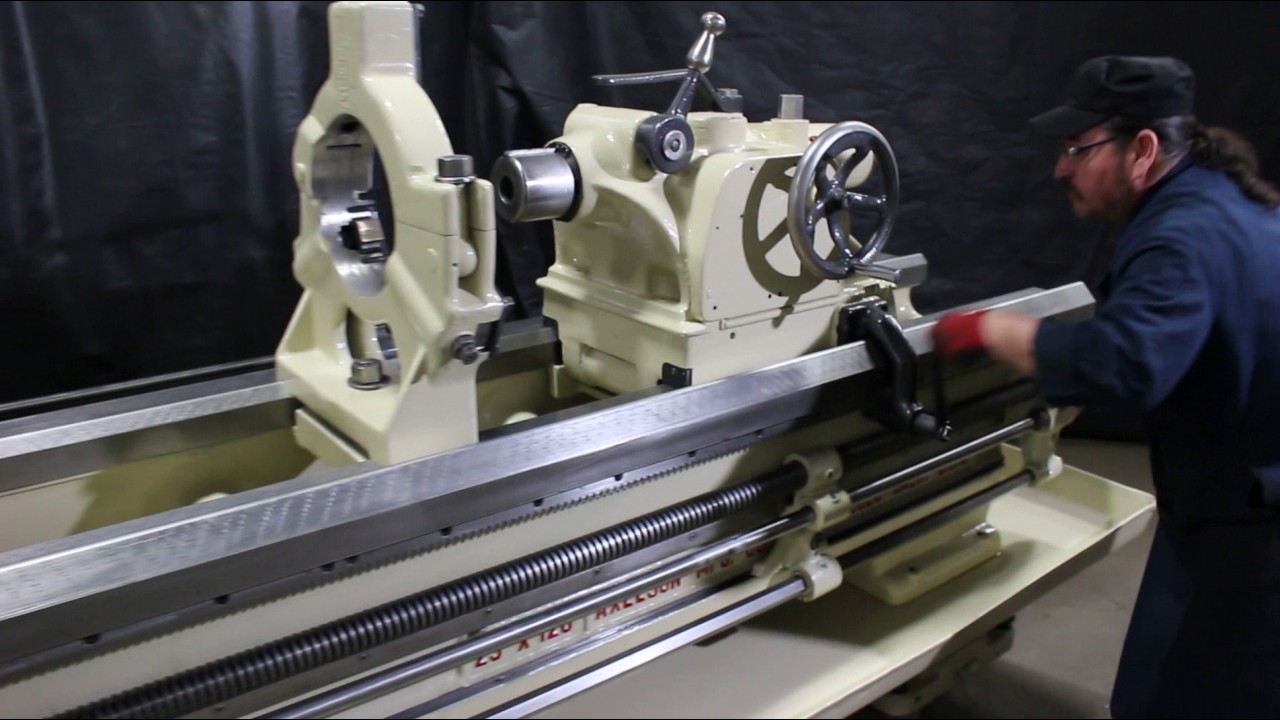

Pre-Owned Axelson 28” x 132” Very Heavy Pattern Lathe
Model: 25 Serial No: 1613

General specifications are approximate and are subject to verification.
Swing over bed: 28 ¾”
Swing over slide: 17”
Max center distance: 132”
Spindle nose: D1-11
Spindle bore: 2 5/8
Spindle speeds: 24 Changes 6 to 555 RPM
Tailstock Taper: #5
Width of Carriage: 36”
Width of bed: 26”
Threads: 45 Changes 1 to 30 TPI
Feeds: 45 Changes .004 to 127 IPR
Main motor: 20 HP
Electricals: 480 Volts
Approx. Weight: 14,000 Lbs.
Approx. Dimensions: 232”L x 60”H x 64”W

Complete with:
• 24” 4 Jaw Chuck
• Steady Rest
• Taper Attachment w/ Clamp
• Coolant Pump
• Chip Pan

Condition: Runs very well. Ways show some light scoring due to lack of carriage oiling. Way Oiling System Replaced. All and all a good heavy duty lathe.


Inventory No: 8697
